Clearing
450 ton
Mod. SA - 450-132- 84
Power : 450 ton
Number of conrods : 4
Number of pieces : 2
Stroke : 610 mm
Light at tdc : 2289 mm
Table dimensions : 3350x2134
Adjustment slide : 203 mm
Stroke per minute : 16
Cushion : 3
Power of the cushion : 84 ton
Stroke of the cushion : 200 mm

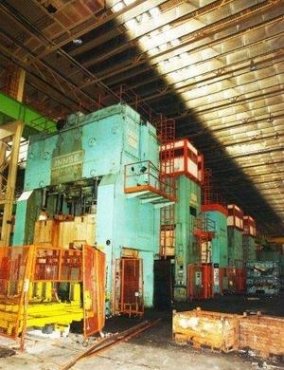

This press is the one press of a press Line:
the presses of this line are as following:
Clearing 1500T
Double effect mechanical
Table dimensions : 4672x2438
Slide dimensions : 4672x2438
Clearing 900T
stroke 940mm table dimensions 4572x2464
Schuller 600T
stroke 850mm, Table dimensions:
4500x2200mm
Clearing 450T
stroke 610mm, table dimensions:
3350x2134mm
Specifications:
Clearing
450 ton
Mod. SA - 450-132- 84
Power : 450 ton
Number of conrods : 4
Number of pieces : 2
Stroke : 610 mm
Light at tdc : 2289 mm
Table dimensions : 3350x2134
Adjustment slide : 203 mm
Stroke per minute : 16
Cushion : 3
Power of the cushion : 84 ton
Stroke of the cushion : 200 mm
This press is the one press of a press Line:
the presses of this line are as following:
