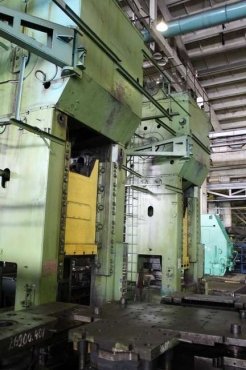

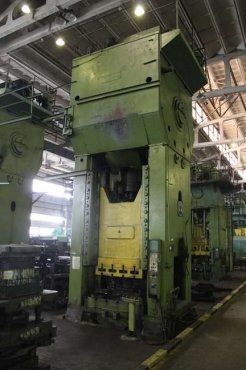

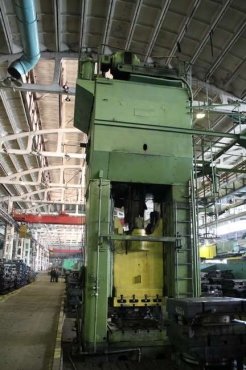

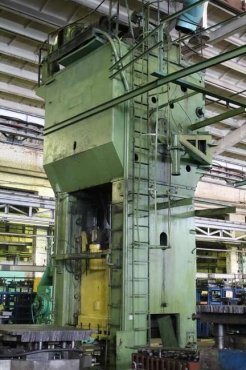

Straight side press ERFURT PKZe 1250 made in Germany. Quantity: 2 units. One press has ejector, another one doesn‘t.
Specifications:
Maximum ram force: 1250 ton
Slide stroke: 500 mm
Slide adjustment: 215 mm
Maximum shut height between bolster plate and slide (stroke down, adjustment up): 860 mm

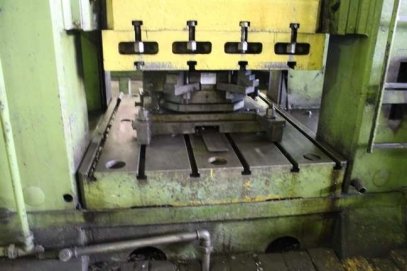

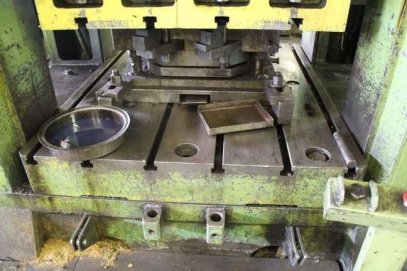

Bed area (width x depth): 1600x1850
Slide area (width x depth): 1300x1400 mm
Opening in the bed (width x depth): 1100x1100 mm
Main motor rating: 90 kW
Min number of no-load stroke: 8
Cushion force in the bolster: 2000 kN
Cushion stroke: 200 mm
Height above floor: 7900 mm
