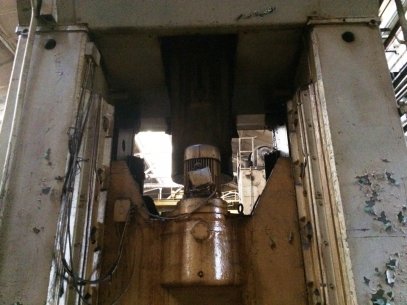

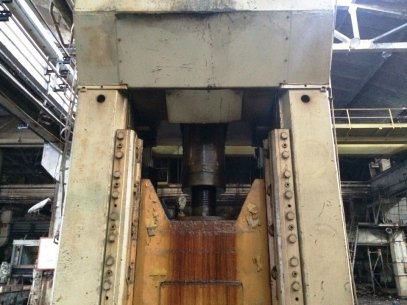

Straight side press ERFURT PKZe 1250 made in Germany in 1987.
Specifications:
Max. ram force: 1250 tons
Slide stroke: 500 mm
Slide adjustment: 215 mm
Max. shut height between bolster plate and slide (stroke down, adjustment up): 860 mm

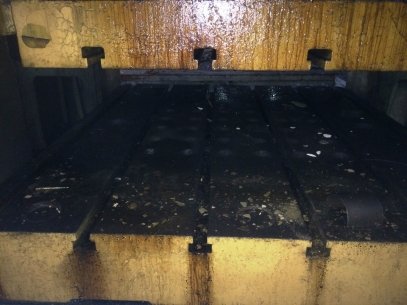

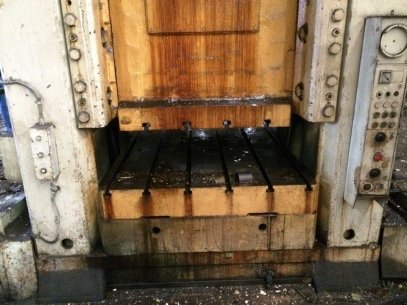

Bed area (width x depth): 1600x1850 mm

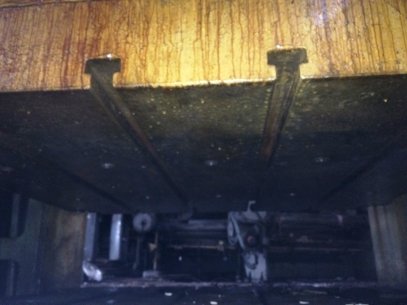

Slide area (width x depth): 1300x1400 mm
Opening in the bed (width x depth): 1100x1100 mm

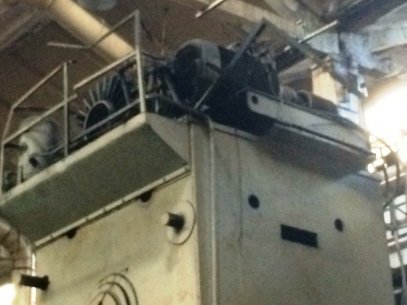

Main motor rating: 90 kW
Min. number of no-load strokes: 8
Cushion force in the bolster: 2000 kN
Cushion stroke: 200 mm

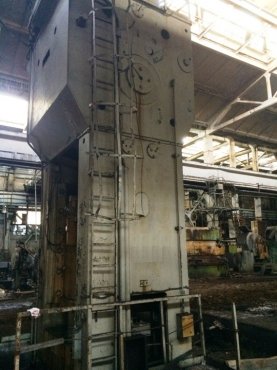

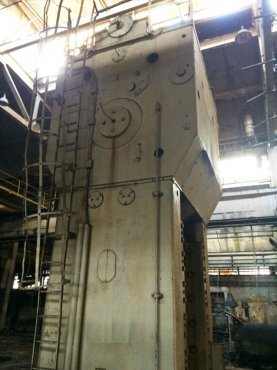

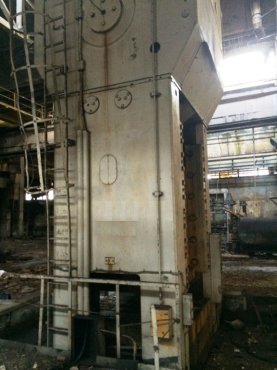

Height above floor: 7900 mm
