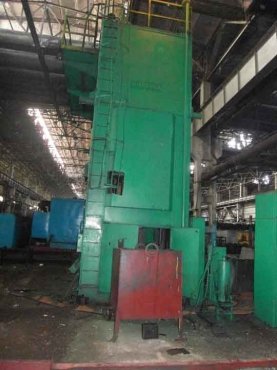

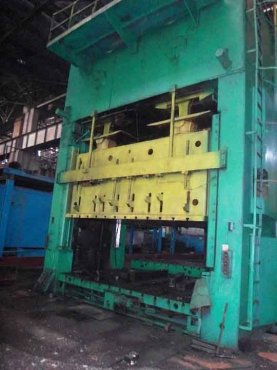

Straight side single action mechanical press ERFURT PKZV I 800.FS made in Germany. Press is with moving table.
Specifications:
Max force of slide: 800 ton
Stroke of slide: 500 mm
Adjustability of slide: 500 mm
Max daylight between bolster and slide (SDAU): 1200 mm
Width between columns: 4000 mm
Slide area (WxD): 4000x2500 mm
Bed area (WxD): 4000x2500 mm
Opening in bed (WxD): 3520x1520 mm
Moving table height: 630 mm
Main motor power: 90 kW
Idle stroke rate: 14 per min
Counterpressure of cushion in bed: 160 ton
Stroke of cushion plate: 200 mm
Height above ground: 8400 mm
