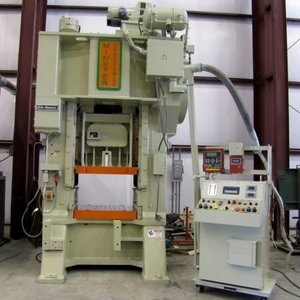

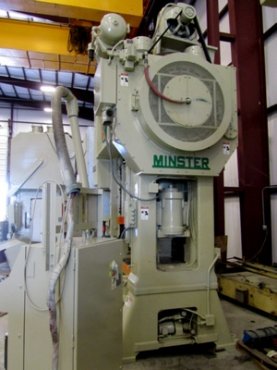

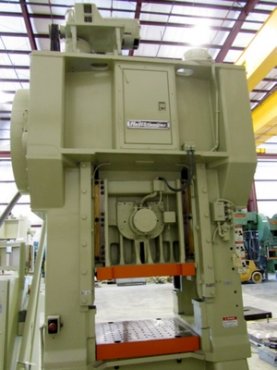

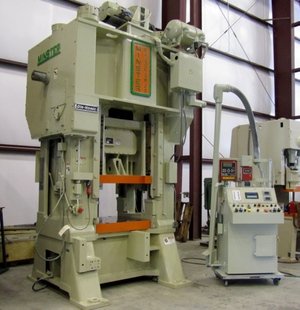

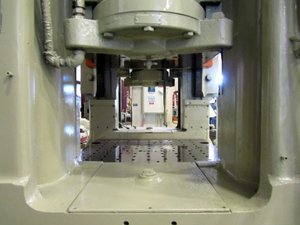

200 TON MINSTER HIGH SPEED PRODUCTION PRESS - RECONDITIONED
MODEL: No. E2-200-36-30
CAPACITY: 200 TON
STROKE: 4"
SHUT HEIGHT TO BED: 25" (SDAU)

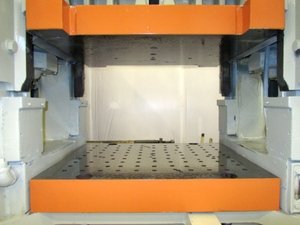

BED AREA: 36" RL X 30" FB
RAM ADJUSTMENT: 4" (MOTORIZED)
SPEED: 100 - 200 SPM (VARIABLE)
RAM AREA: 36" RL X 30" FB
WINDOW SIZE: 21" FB X 13" H
DIST UPRIGHTS / FLOOR TO BED: 37" / 32"
BOLSTER SIZE: 4-1/2" X 36" RL X 30" FB

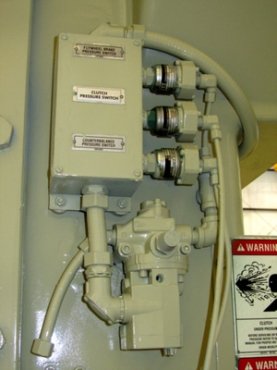

CLUTCH: AIR CLUTCH & BRAKE

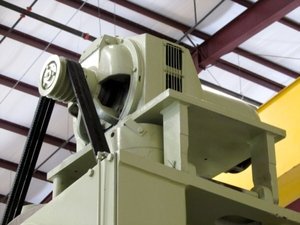

ELECTRICS: 30 HP, LOUIS ALLIS EDDY-CURRENT
DRIVE, 1760 RPM, 230/460/3/60V
APPROX. DIMENSIONS: 13'6" H X 8' RL X 6' FB
APPROX. WEIGHT: 35,000 LBS
EQUIPPED WITH: AIR COUNTERBALANCED RAM
RECIRCULATING OIL LUBRICATION SYSTEM
HYDRAULIC TIE ROD NUTS
TWIN DRIVE
SINGLE BACKGEARED WITH GEARS IN OIL
RECONDITIONING INCLUDED: NEW CLUTCH & BRAKE SEALS
NEW SPRINGS, STUDS & NUTS
BOLSTER PLATE GROUND
YEAR: 1975
CONDITION: VERY GOOD/RECONDITIONED
LOCATION: COLUMBIA, TN (Nashville area)

13'6" H x 8' RL x 6' FB

35,000
