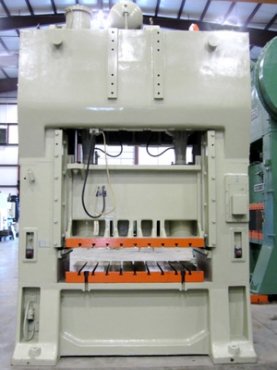

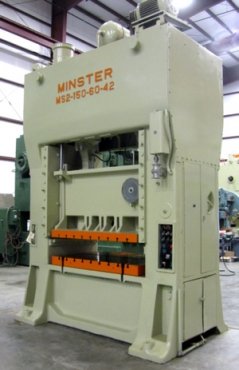

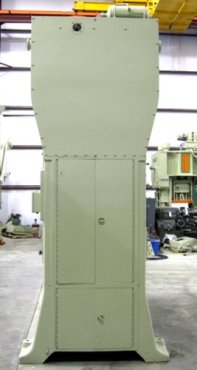

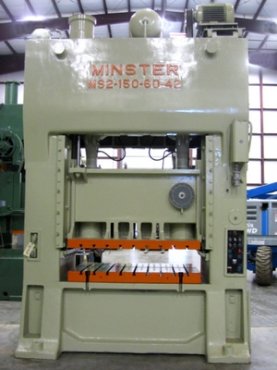

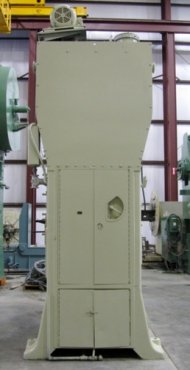

150 Ton Minster Straight-Side Dbl. Crank Press - RECONDITIONED
*Note: 2 IN STOCK
Model: NO. MS2-150-60-42
Capacity: 150 TON
Stroke: 12"
Shut Height to Bed: 20" SDAU
Bed Area: 60" RL X 42" FB
Speed: 33 SPM
Ram Area: 60" RL X 42" FB (T-SLOTTED)
Ram Adjustment: 10" (MOTORIZED)

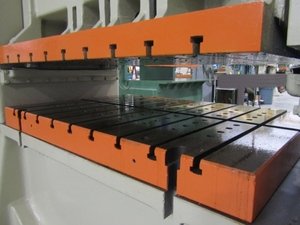

Bolster Size: 5" X 60" RL X 42" FB (T-SLOTTED)
Dist Uprights/Floor to Bed: 62" / 32"
Clutch: MINSTER AIR CLUTCH AND BRAKE
Electrics: 20 HP BALDOR, 1760 RPM, 230/460/3

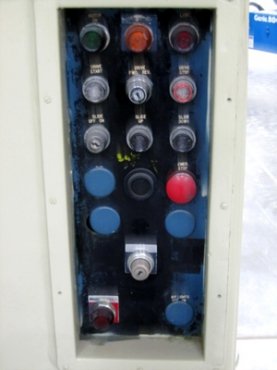

60 V MOTOR AND RELAY CONTROLS
Approx. Dimensions: 13'H X 8'6" RL X 5'6" FB
Approx. Weight: 50,000 LBS.
Equipped With: FLOOR STANDING BASE
TIE ROD
AIR CUSHION IN THE BED
AIR COUNTERBALANCES
CAST IRON FRAME CONSTRUCTION
TWIN DRIVE
SINGLE BACK GEARED
TRABON AUTOMATIC OIL LUBRICATION SYSTEM
Year: 1956
Condition: VERY GOOD/RECONDITIONED
Location: OUR COLUMBIA, TN WAREHOUSE (Nashville area)
