Runs Very Good, Light Curtains, 2 Air Cushions, Windows, #M2690
Specifications:

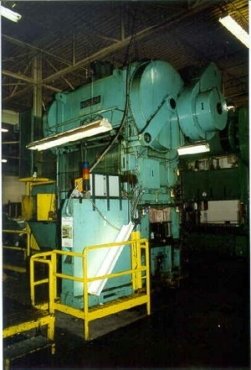

300 TON NIAGARA STRAIGHT SIDE DOUBLE CRANK PRESS
Model: #BP2-300-72
Capacity: 300 TONS
Stroke: 12"
Max. Shut Hght to Bed:31" SDAU
Bed Area: 72" RL X 42" FB
Speed-Variable: 40 - 70 SPM W/EDDY CURRENT DRIVE
Ram Area: 72" LR X 42" FB (T-SLOTTED)
Ram Adjustment: 12" MOTORIZED
Bolster Size: T-SLOTTED
Windows: 25" WIDE X 20" HIGH
Clutch: NIAGARA AIR CLUTCH AND BRAKE
Electrics: *REXCON BRAKE MONITOR/CONTROL
WINTRESS LOAD AND MALFUCTION DETECTOR
LIGHT CURTAINS
Approx. Dimensions: 14' LR X 9'10" FB X 17' HIGH
Equipped With: *FLOOR STANDING BASE
(2) AIR CUSHIONS IN BED
TIE ROD STEEL FRAME CONSTRUCTION
AIR COUNTERBALANCED RAM W/8 PT. GIBS
RECIRCULATING LUBRICATION SYSTEM
*NOTE: VIDEO AVAILABLE
Year: 1974
Condition: RUNS VERY GOOD
Location: ELK GROVE VILLAGE, IL
