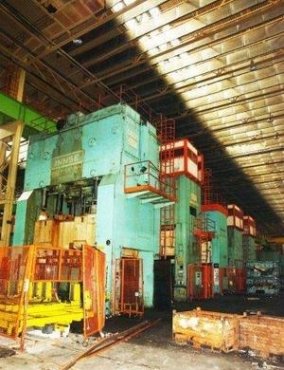

Schuller
600 ton
Mod. P4E2Sqb 600/4,5/0,85
Number of conrods : 4
Table dimensions : 4500x2200
Stroke : 850 mm
Light at tdc : 2050
Adjustment slide : 350 mm
Stroke per minute : 9-16
Cushion stroke : 300 mm
Cushion power : 165 ton
This press is the one press of a press Line:
the presses of this line are as following:
Clearing 1500T
Double effect mechanical
Table dimensions : 4672x2438
Slide dimensions : 4672x2438
Clearing 900T
stroke 940mm table dimensions 4572x2464
Schuller 600T
stroke 850mm, Table dimensions:
4500x2200mm
Clearing 450T
stroke 610mm, table dimensions:
3350x2134mm
Specifications:
Schuller
600 ton
Mod. P4E2Sqb 600/4,5/0,85
Number of conrods : 4
Table dimensions : 4500x2200
Stroke : 850 mm
Light at tdc : 2050
Adjustment slide : 350 mm
Stroke per minute : 9-16
Cushion stroke : 300 mm
Cushion power : 165 ton
This press is the one press of a press Line:
the presses of this line are as following:
