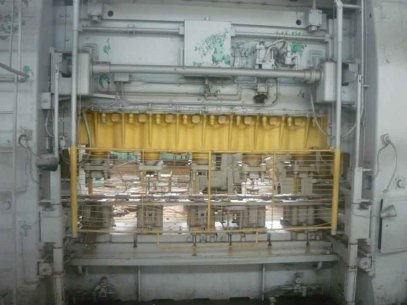

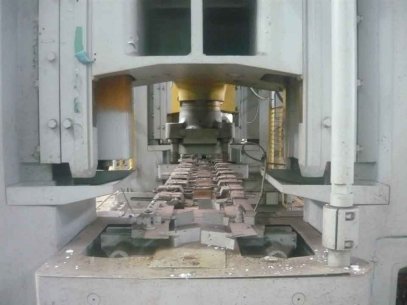

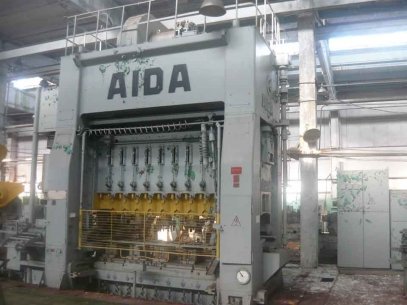

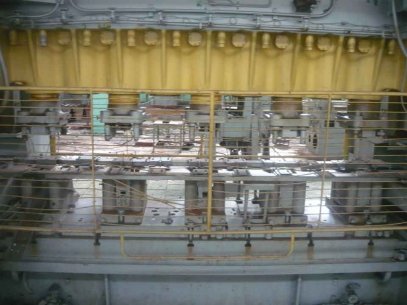

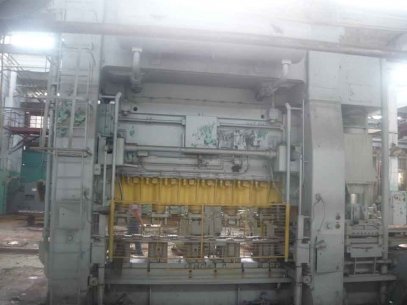

Automatic transfer press AIDA FT2-16 made in Japan.
Specifications:
Capacity: 160 ton
Each stage capacity: 50 ton
Capacity of blanking stages: 50 ton
Number of stages (incl. blanking stage): 10
Distance between stages: 300 mm
Stroke length: 350 mm
Blanking slide stroke: 60 mm
Max drawing depth: 120 mm
Max blank diameter: 285 mm
Adjustment of tool holder: 30 mm
Number of strokes per 1 min: 15-35
Die height (Stroke down adjust up between carrier plate and tool holder): 650 mm
Thickness of bolster: 150 mm
Bed hole area: 220 mm
Main electric motor: 30 kW
Knockout capacity: 1 ton (mechanical type)
Feed stroke length: 300 mm
Feed direction: left to right
Height of feeding: 400 mm (over carriage plate)
Clamp stroke length: 120 mm (one side)
Inside width of feed bars: 350 mm (at clamp)
Die cushion capacity: 12 ton (1st stage)
Die cushion capacity: 5 ton (4th stage)
Stroke length (die cushion): 130 mm
Power source: 380 V/ 50Hz
