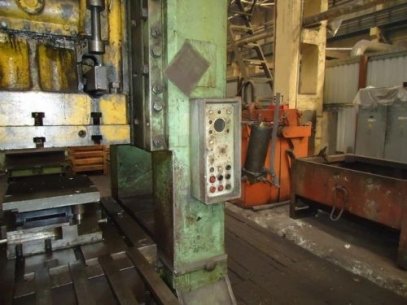

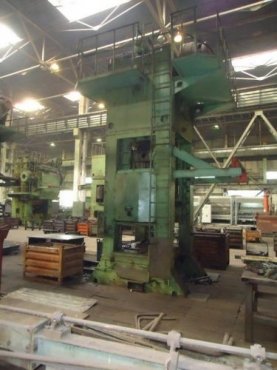

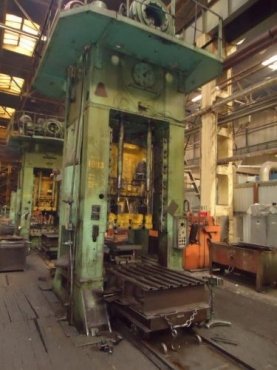

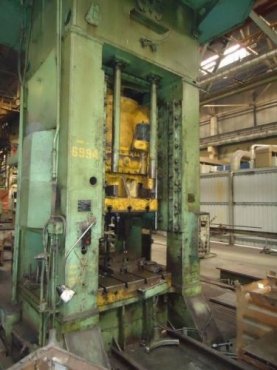

Closed single-crank press KB2538 made in 1986, Russia. Hydro-pneumatic pillow is available.
Press is in working condition.
Specifications:
Maximum force: 630 ton
Slider stroke length: 320 mm
Number of courses of a slider per minute: 20
Max distance between bolster and ram: 800 mm
Adjustment: 180 mm
Table size: 1250x1250 mm
Slider overall dimensions: 1200x1000 mm
Aperture in a table: 800x800 mm
Window dimensions in cheeks: 750x400 mm
Hydro-pneumatic pillow: available
