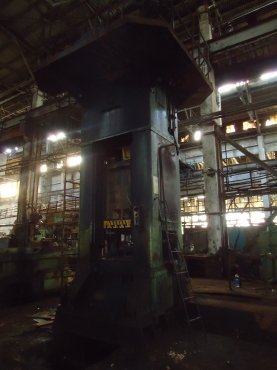

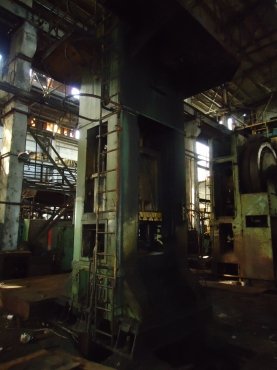

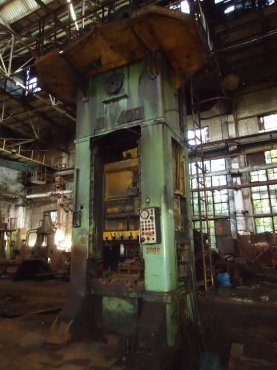

Trimming press KV2536
400 tn effort
1988 year of manufacturing

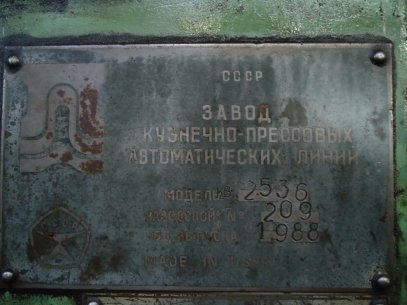

made by Pinsk, Belorussia
Specifications:
Trimming press KV2536
Specification:
Nominal force 400 t
Slider stroke, mm 250
Slider strokes, spm 25
Shut height, mm 460
Distance adjustment between table and slider, mm 160
Slider size, mm 800 x 800
Table size, mm 1000 x 1000
Table gap size, mm 630 x 630
Bolster plate thickness, mm 160
Table height above floor, mm 660
Max. stamp weight fixed on the slider, kg 1000
Cushion stroke, mm 160
Main power drive, kW 40
Machine dimensions, mm 3470 x 3140 x 5940
Machine weight, kg 31400
Condition is good enough, but its not new machine.
