Some information:

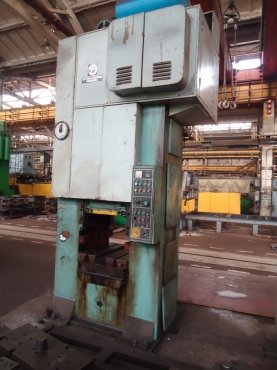

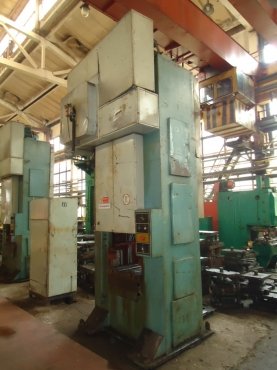

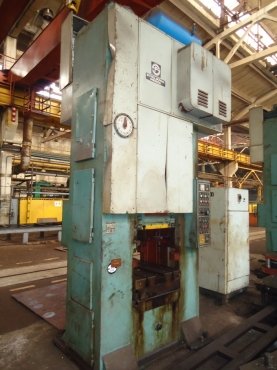

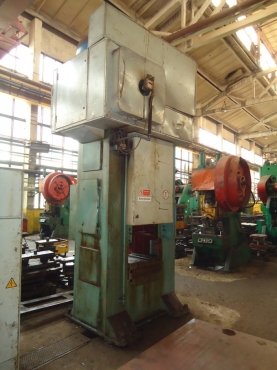

Trimming press LK160
160 tn effort
1990 year of manufacturing

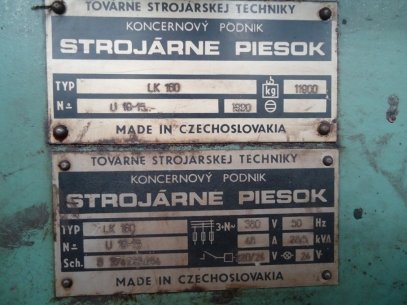

made by Strojarne Piesok, Czechoslovakia
Specifications:
Trimming press LK160
Specification:
Capacity, ton 160

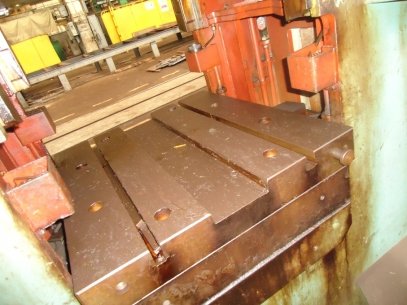

Table size, mm 710 x 810

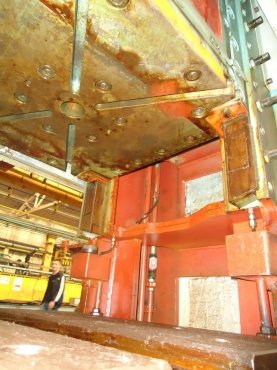

Ram size, mm 670 x 670
Shut height, mm 560
Ram stoke, mm 200
Ram stokes per minute 36
Bolster plate-to-ram adjustment stroke, mm 120
Bolster plate thickness, mm 120
Table gap diameter, mm 320
Ram gap diameter, mm 65
Main motor power, kW 18,5
Total power required, kW 28,5
Press dimensions, mm 1820 x 1750 x 4200
Press weight, kg 11900
There are two presses available. Thay are complete and in good condition.
