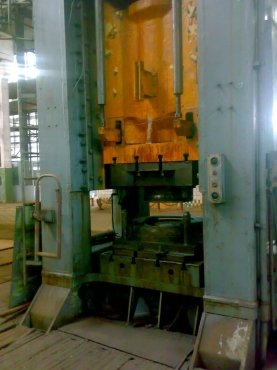

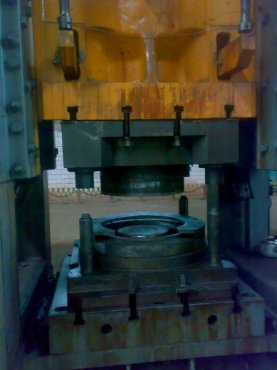

Trimming press Voronezh K2540
1000 tn effort
1979 year of manufacturing
made by Voronezh plant,Russia
Specifications:
Trimming press Voronezh K2540
Specification:
Nominal force 1000 t
Slider stroke 400 mm
Number of strokes per min 20
Number of single turn - on 15
The closed hight 730 mm
Slider adjustment 200 mm
Table : 1250 x 1250 mm
Bolster thickness 260 mm
Slider : 1200 x 1460 mm
Hole in table 800 x 800 mm
Window in column 1260 x 780 mm
Weight: 80000 kg
Good condition .
Revision must be done at the electric and hydraulic part of the machine.
Press has worked very little.
