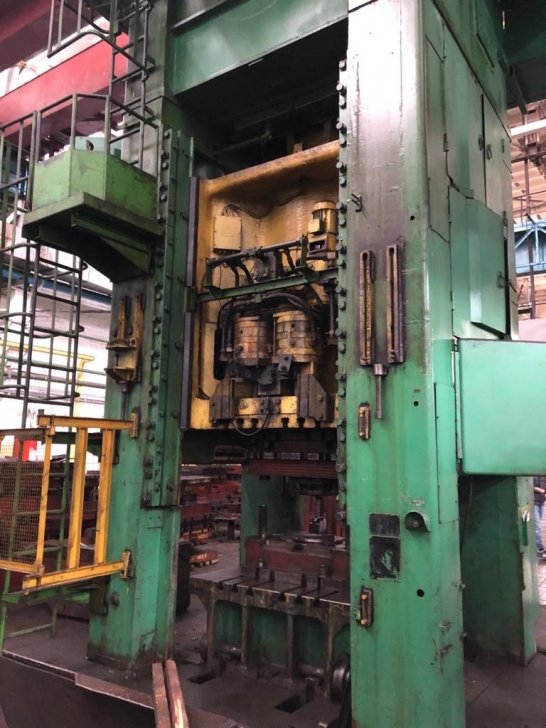

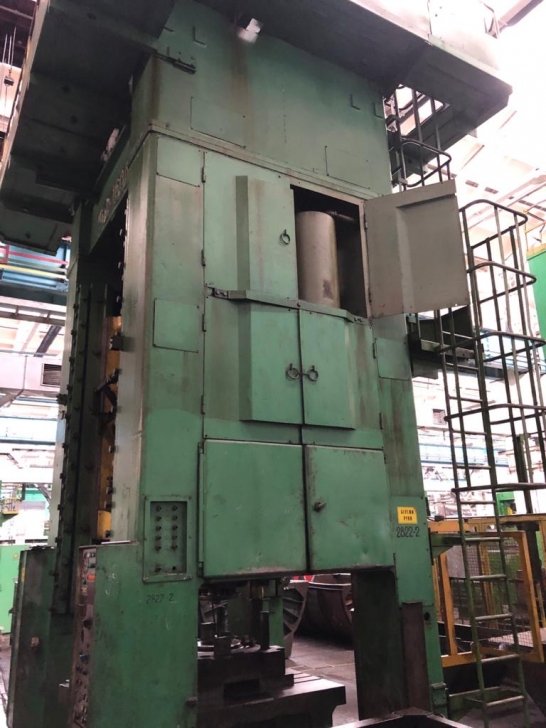

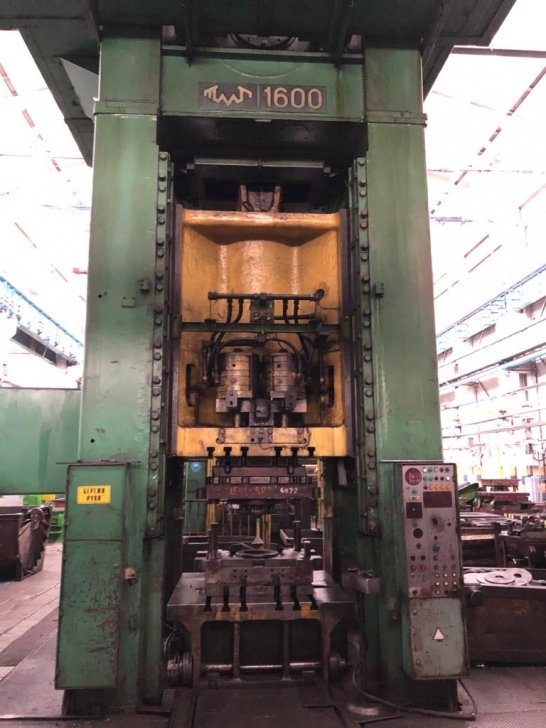

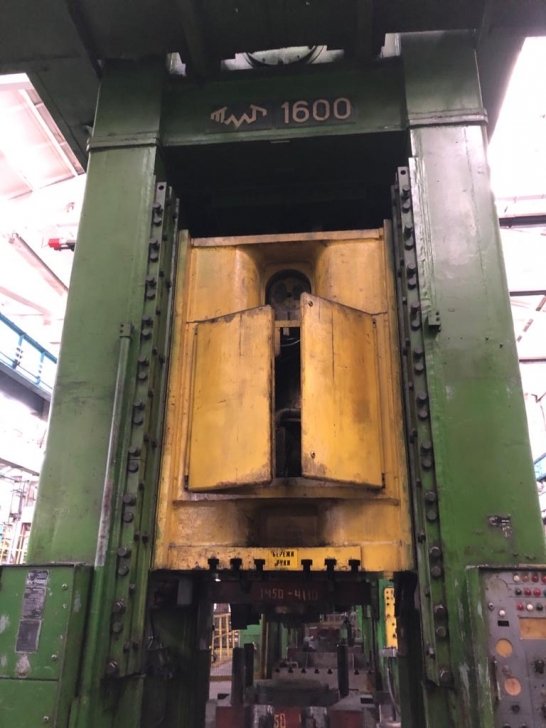

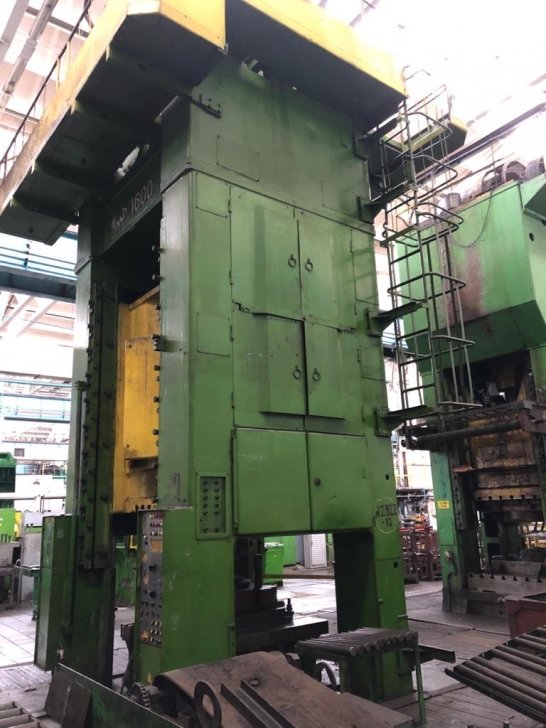

Closed single-crank press VORONEZH KB2542 made in 1988 in Russia.
Specifications:
Maximum force: 1600 tons
Slider stroke length: 400 mm
Unattainable-course: 12 mm
Number of courses of a slider per minute: 16 rpm
Number of single turn-on: 12 rpm
The closed height: 870 mm
Adjustment: 220 mm

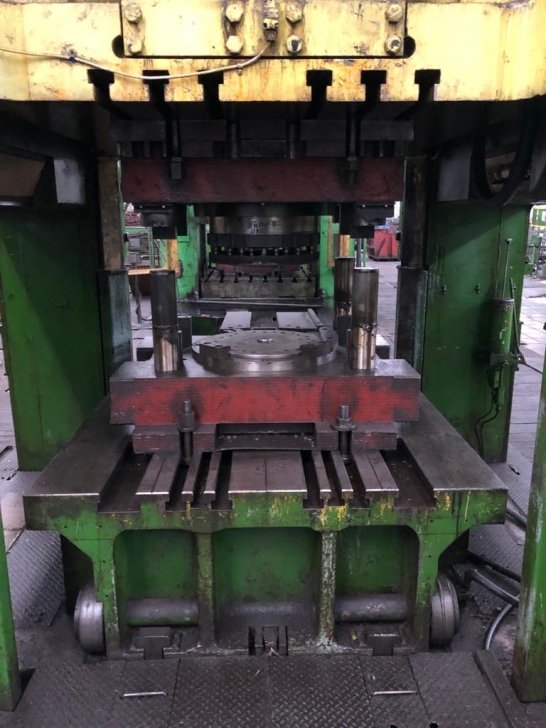

Under-forging plate:
-From left to right: 1600 mm
-From front to rear: 1600 mm
-Thickness: 650 mm
Slider overall dimensions: 1600x1600 mm
Aperture in a table: 1000x1000 mm
Window dimensions in cheeks: 1650x1650 mm
Course of a rigid pusher in a slider: 100 mm
Force of a rigid pusher in a slider ton-force: 80
Main electric motor power: 110 kW
Course of pneumatic pillow: 160 mm
Force of pushing out of a pneumatic pillow ton-force: 71
Hydropneumatic pillow:
-Working course: 250 mm
-Force of pushing out ton-force: 25
-Force of a clip ton-force: 250
