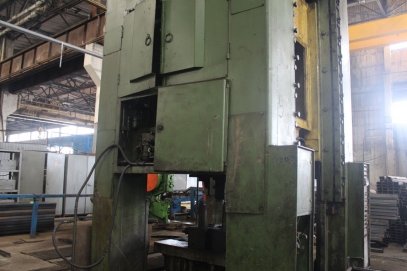

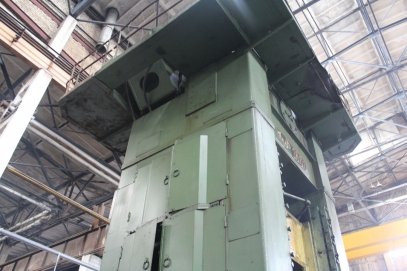

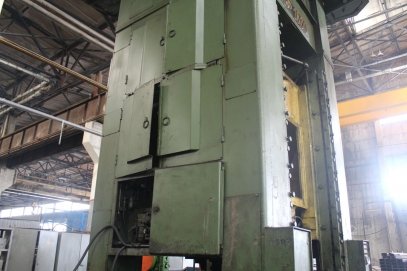

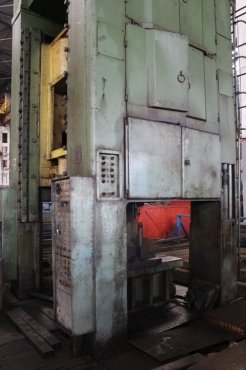

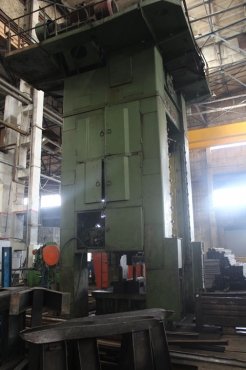

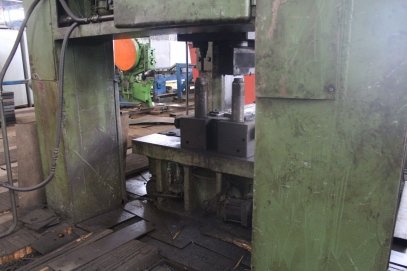

Closed single-crank press VORONEZH KB9542 made in Russia. Press is under power. It has moving table.
Specifications:
Capacity: 1600 tons
Slide stroke: 630 mm
Slide stroke to the extreme bottom position where the press develops its rated capacity: 7 mm
Number of continous strokes per 1 min: 16
Max. number of single strokes per 1 min: 12
Max. distance between bolster plate and slide: 810 mm
Adjustment: 220 mm

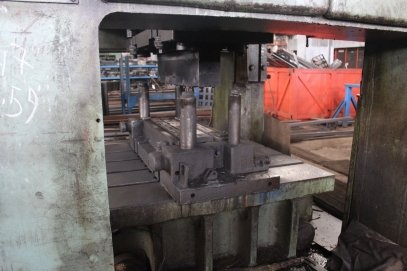

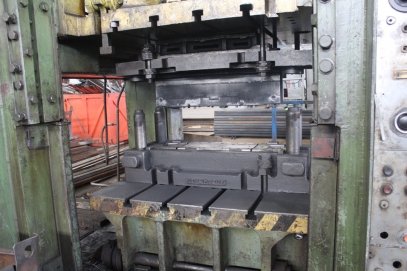

Table (bolster plate) dimensions:
-Left to right: 1600 mm
-Front to back: 1600 mm
Slide dimensions:
-Left to right: 1600 mm
-Front to back: 1600 mm
Window in upright dimensions:
-Left to right: 1650 mm
-Height: 1550 mm
Main motor: 110 kW
