Description:

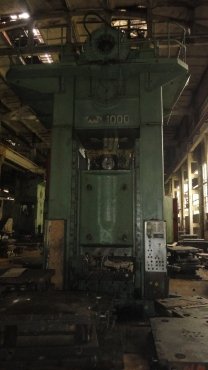

This press is designed for carrying out various cold pressing operations in making parts from band, strip and sheet: blanking, punching, shallow drawing, bending and etc.
The press is in excellent mechanical condition.
Specifications:
Manufactured by Voronezh plant (Russia)
Year of manufacture 1984
Capacity, ton 1000
Slider stroke, mm 400
Unattainable stroke, mm 12
Slider strokes, spm 20
Shut height, mm 730
Distance adjustment between table and slider, mm 200
Slider size, mm 1200 x 1200
Table size, mm 1250 x 1250
Table gap size, mm 800 x 800
Bolster plate thickness, mm 260
Hydro-pneumatic cushion capacity (clamp), ton 125
Hydro-pneumatic cushion capacity (eject), ton 12
Hydro-pneumatic cushion stroke , mm 125
Hydro-pneumatic cushion load, kg 5250
Pneumatic cushion capacity (eject), ton 40
Pneumatic cushion stroke, mm 160
Pneumatic cushion load, kg 4500
Main power drive, kW 75
Voltage, V 340
Machine dimensions, mm 4310 x 3820 x 6790
Machine weight, kg 77100
Dimensions:
4310 x 3820 x 6790 mm
Weight:
77100 kg
