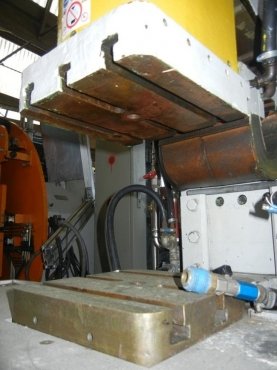

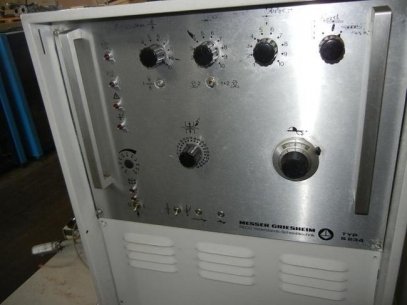

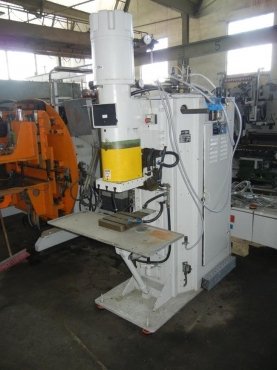

esser Griesheim thyristor control series HS200 connection power: 28 kW power at 50% duty cycle: 280 kVA max. Performance (short-circuit power) 1500 kVA max. Secondary Current: 125,000 A 735/4200 AMP 380 V, 50 Hz, 0.5 cos Pneumatic head bore of the cylinder: 230 mm Constant Total stroke: Constant 125 mm stroke of the Spreitzöffnung: 100 mm welding stroke: 25 mm welding pressure in the primary air of 7 bar : 3000 kg table: L x W: 250 x 250 mm Base: Dimensions: 1360 x 630 mm distance between mounting holes: 1300 x 500 mm diameter of the holes :: 18 mm Dimensions: Total height dimension: 2240 mm Width: 630 mm Depth: 1360 mm Weight : around 2100kg
