YEAR: 1997
WORK AREA: 2530x1270 mm
PUNCHING FORCE: 30 ton

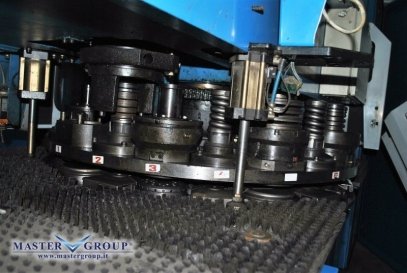

N. OF TOOL STATIONS: 21 (14 FIXED - 5 INDEX - 2 MULTI TOOL)
MAX TOOL DIAMETER: 89 mm
MAX ADMITTED LOAD: 200 Kg
X-AXIS TRAVEL: 2084 mm
Y-AXIS TRAVEL: 1317 mm
MAX PUNCHING THICKNESS: 8 mm

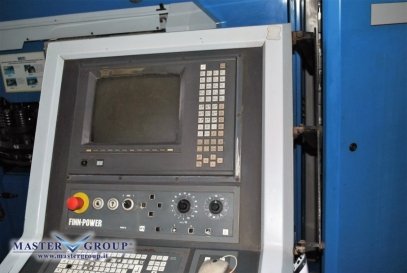

CONTROL UNIT: FANUC 16P
Weight: 12000 Kg
Overall dimensions: 5400x5600x2500 mm
Accessories: RS 232 SERIAL PORT
Note: WITH JET CAM PROGRAMMING SOFTWARE
