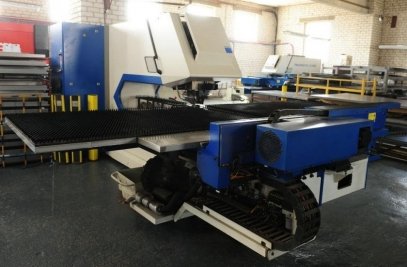

The machine is used for broaching, notching and forming. Rotation of all tools is possible.
Worked hours - 32000.
Machine is in good condition. It is possible to check the machine’s work. If necessary, training of the operator and technologist, help in writing programs are available.
Specifications:
Technical characteristics:
X and Y axis without intercept - 1270х1270 mm
max sheet thickness - 6.4 mm
max force - 180 kN
max workpiece weight - 75 kg
number of strokes when cutting with 1 mm step - 900 1/min
number of strokes when cutting with 25 mm step - 420 1/min
number of tools – 9
max number of tools - 90 (when using Multitool tools)
rotate - 360 degrees, all instruments
max diameter of tool while single stroke - 76.2 mm, for all toolshop items
max height of forming - 12 mm
deviation from the position- ±0.1 mm
medium range- ±0.3 mm (in accordance with VDI/DGQ 3441)
CNC system - based BOSCH type 3
total power - 17 kW/50 Hz
average consumed power - 8 kW/h
dimensions – 4100x5700 mm
height - 2070 mm
weight - 8000 kg
Additional equipment:
brush tables
additional fixed brush tables - 2 pcs
air bellows - 2pcs
