FINN POWER, c5, STAMPING, PUNCHING
  • Condition:Used
  • Category:PUNCHING
  • Type:STAMPING
  • Manufacturer:FINN POWER
  • Model:c5
  • YOM:2009
  • Location:Netherlands, Babberich
  • Price:On request
  • Stock No:5212
  • Control:CNC
  • ID:AS28590
Description:

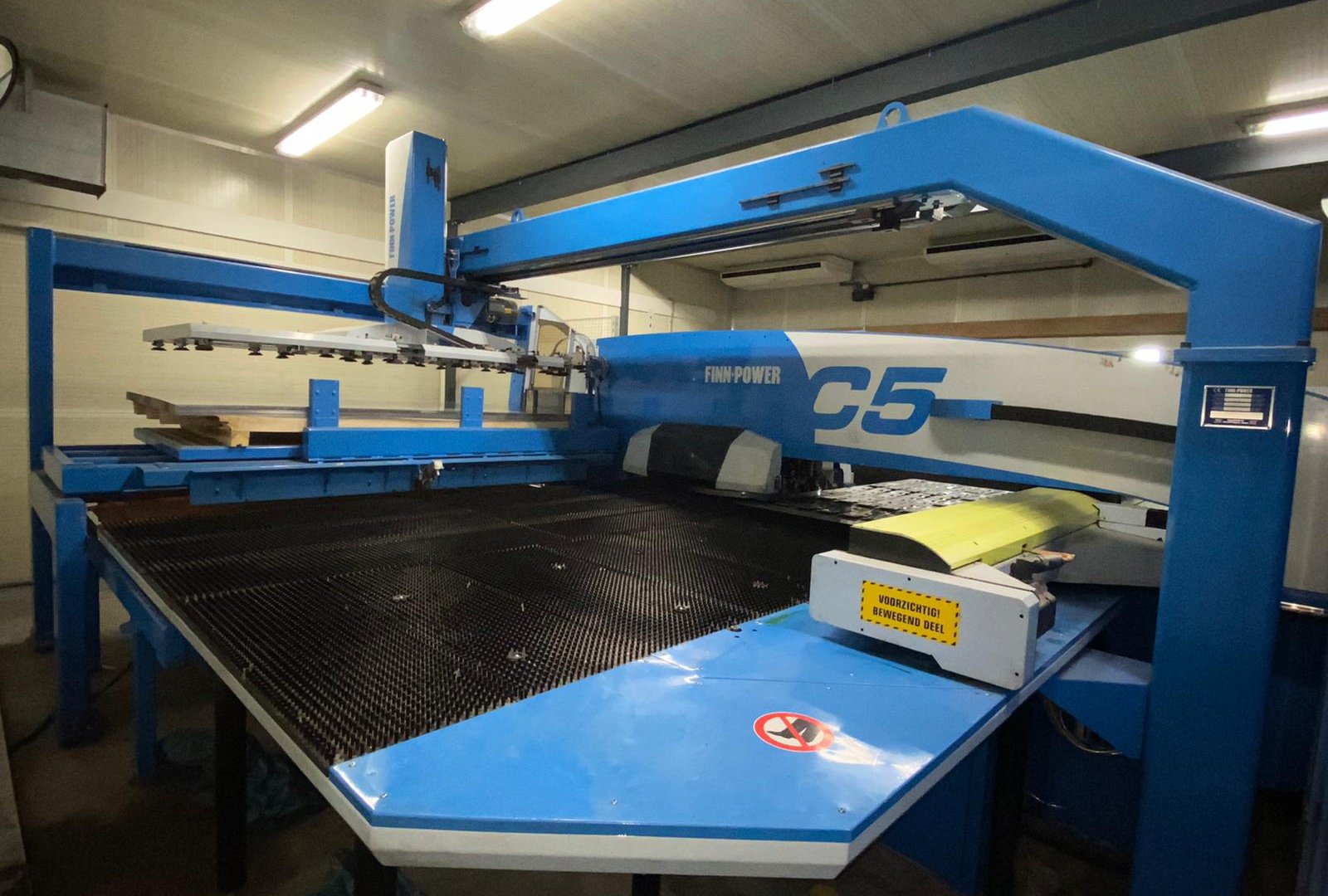

Finnpower C5 Punching machine 2530 x 1270 x 8 mm = 5212 Mach4metal

Table load 200 kG
Working area X Axis 2584 mm
Working area Y Axis 1270 mm
Working area X Axis with override 5168 mm
Punching force 30 T
Maximum sheet thickness 8 mm

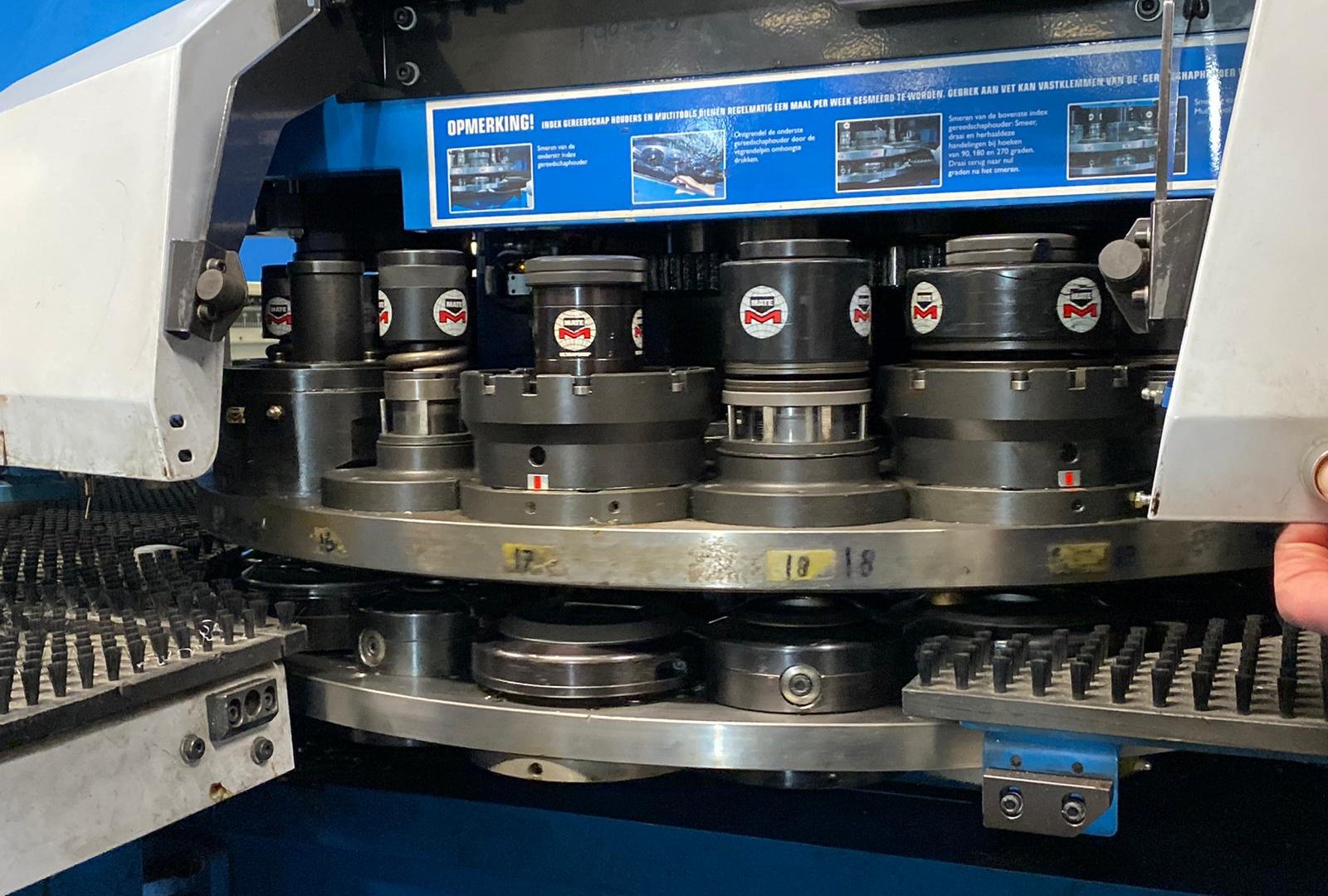

Turret position 20
Auto indexing positions 2 x Multi tool
Positioning speed X and Y Axis 10800 mm/min.
Change speed revolver 166 Rpm
Control Siemens 840D
Sheet master loading arm Yes
Corner guillotine No
Sheet tower storage Yes
Specifications:
Finnpower C5 Punching machine 2530 x 1270 x 8 mm = 5212 Mach4metal

Table load 200 kG
Working area X Axis 2584 mm
Working area Y Axis 1270 mm
Working area X Axis with override 5168 mm
Punching force 30 T
Maximum sheet thickness 8 mm
Turret position 20
Auto indexing positions 2 x Multi tool
Positioning speed X and Y Axis 10800 mm/min.
Change speed revolver 166 Rpm
Control Siemens 840D
Sheet master loading arm Yes
Corner guillotine No
Sheet tower storage Yes
Dealer name:
Mach4Metal Netherlands, Babberich
