CNC: FANUC 18i-MB SERIES
Axis travel (X) = 1250.
Axis travel (Y) = 1000.
Axis travel (Z) = 1000.
Rapid advances (X, Y, Z) = 24 m / min
Minimum / maximum distance from the table to the head = 2200/1200 mm
Table: 2 x 800 x 800 mm
Specifications:
CNC: FANUC 18i-MB SERIES
Axis travel (X) = 1250.
Axis travel (Y) = 1000.
Axis travel (Z) = 1000.
Rapid advances (X, Y, Z) = 24 m / min
Minimum / maximum distance from the table to the head = 2200/1200 mm
Table: 2 x 800 x 800 mm
Maximum capacity of table: 1600 KG
Spindle speed: 20-6000 R.P.M

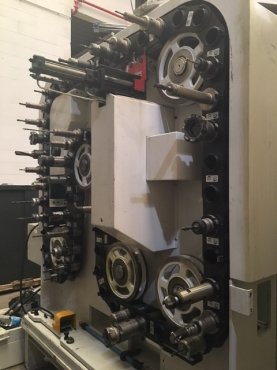

Number of tools: 60
Screw Type: ISO-50
Main motor power: 22KW
Internal tool cooling: Coolant
Change 3 speed range
Chip extractors
Cooler
Year: 2003
