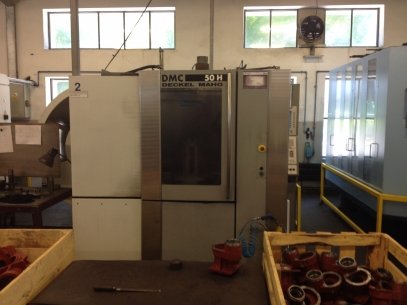

Horizontal Machining Centre
Deckel Maho DMC 50H
Year of manufacturing 2004
Control:
Name Sinumerik 840D
Manufacturer: Siemens
Kind/Type: 3-D CNC Control
Technical data
Spindle taper: SK 40 DIN 69871
Feed rate longitudinal / transverse / vertical: 50000/50000/50000 mm/min
Rapid traverse
longitudinal / transverse / vertical: 50/50/50 m/min
Working area 1
Longitudinal: 560mm
Cross: 510mm
Vertical: 560mm
Equipment
Cabine

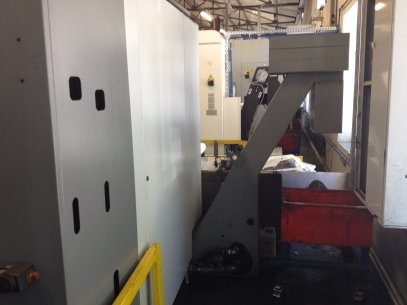

Chip conveyor
Direct measuring system
Pick-up toolchanger
Application: Horizontal
Type of magazine: Wheel
Tool changer plane: horizontal
Type of gripper: Pick up
Number of tools: 40
Tool change time chip to chip horizontal approx.: 3,9
Max. tool weight: 8kg
Max. tool length: 300mm
Max. tool diameter: 85mm
Max. tool dia. with free neighbouring pockets: 140mm
Clamping System: ISO/DIS 7388/II Type

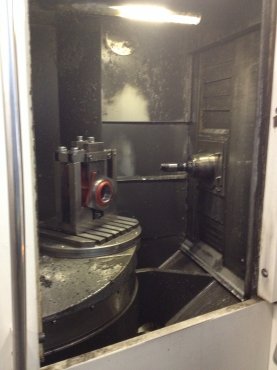

NC rotary table with pallet changer
Type of Measuring system: direct measuring system
Maximum load (table centre): 250 kg
Clamping grid: 50 x 50 mm
Rotation speed max. 4 Axis: 40 rpm
4. axes (swivelling range): 360 x 0,001 degree
Motor spindle 18.000 rpm
Type of main drive: AC
Drive power (100% DC): 22kW
Drive power (40% DC): 30 kW
Torque (100% DC): 76 Nm
Torque (40% DC): 102Nm
Speed range: -18000 rpm
ICS 40 bar form AD
Internal coolant supply
through the spindle from A-D
SK40/HKS63 (23 l/min/40 bar)
(6.2 gal/min at 580 psi)
total capacity 950l / 287.9 gal
incl. chip conveyer (scraper type)
chip disposal rear side (standard)

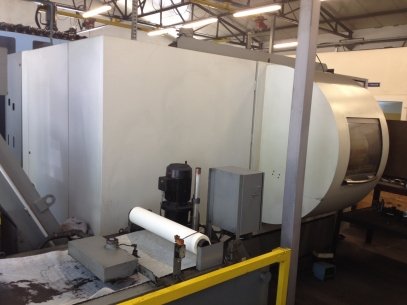

and gravity-band-filter
Machine is in good condition
