DMTG, XD-40A, 2-HI, ROLLING MILLS
  • Condition:New
  • Category:ROLLING MILLS
  • Type:2-HI
  • Manufacturer:DMTG
  • Model:XD-40A
  • YOM:24
  • Location:Italy, MILAN
  • Price:On request
  • Stock No:td500a
  • Control:CNC
  • ID:AS27026
Description:
PRICE VERY INTERESTING !!!!
machineries available in stock

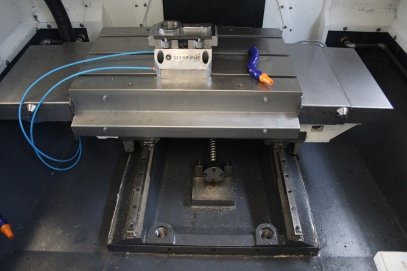

Table dimension: 650x400 mm
X axis Race : 500 mm
Y axis Race: 400 mm
Z axis Race: 330 mm
Distance spindle nose – table : 50-480 mm
Distance spindle nose – column : 400 mm
Max allowed weight on table: 300 Kg
T slots (number – width – pitch) 3x18x125 mm
Linear guideways type
Spindle nose BT 30
Spindle speed range: 0-20.000 r/min
Spindle motor power: 5.5 Kw
Number of tool stations : 16
Max tool diameter : 80 mm
Max tool lenght: 200 mm
Max tool weight : 3 Kg
Tool change time (tool to tool): 1.5 sec
Rapid traverse XYZ : 48 m/min
Work feed XYZ : 1-20.000 mm/min
Overall dimensions: 2040x1580x2275 mm
Machine weight 2750 Kg

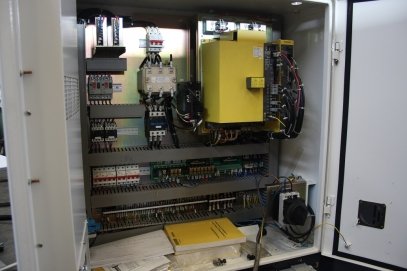

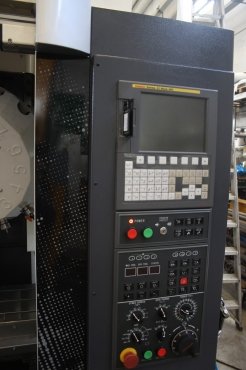

CNC FANUC 0i MATE MD

FEATURES:

Robust mechanical cast iron structure. The width of the base and the positioning of the guideways allow a machining in full support with the working plane that never bends at stroke ends.
The spindle is made of an indipendent group, previously assembled in a separate interchangeable cartridge with the precision bearings housed inside.
The spindle is provided with the pressurization system, to avoid impurities to get inside and ensure a longer life of the bearings.
Tool clamping is provided with an air blast inside of the spindle shaft, for the clining of the cone.
Specifications:
-
Dimensions:
2040x1580x2275
Weight:
2750
Dealer name:
CBJ ENGINEERING LTD United Kingdom, LONDON
