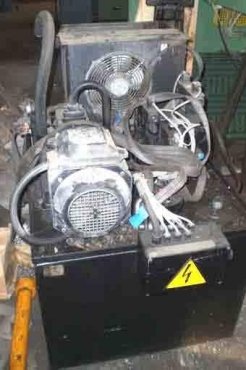

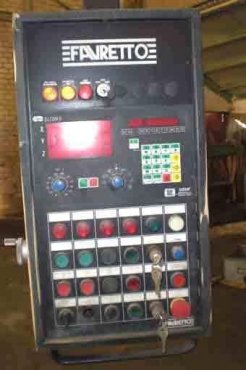

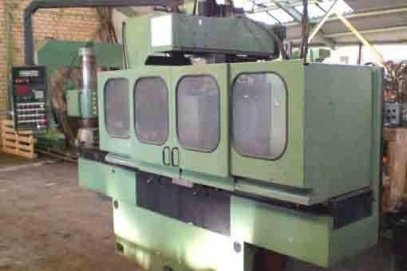

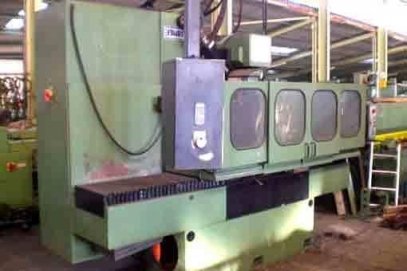

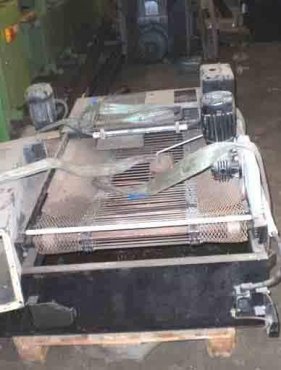

Grinding length 750 mm grinding width 550 mm sanding height 550 mm max. Table load 530 kg magnet plate 700 x 400 mm grinding wheel (x bore x width) 400 x 127 x 100 mm grinding wheel speed 1400 rpm table speed of 2 4 m / min Qürachse: Rapid 5 m / min adjustable speed 1 50 mm variable feed 0 2000 mm / min vertical axis : min rapid traverse 1,5 m /. Delivery 0,001 mm Engine: 9.0 kW hydraulic head grinding 4.1 kW space: Length 4000 mm Width 2950 mm Height 2540 mm Weight 4800 kg With: Programmsteürung Elcon 3 paper band filter Hydraulic truing work area housing
