Travels:
X 2,500 mm
Y 1,000 mm
Z 1,200 mm

Travels:
X 2,500 mm
Y 1,000 mm
Z 1,200 mm

Rotary Platform:
positions 360 Deg.
rotation amplitude +/- 180 Deg.
external diameter 315 mm
accuracy positioning +/- 0,02/300 mm

Ram:
section 390x390 mm
max. spindle power 20 kW

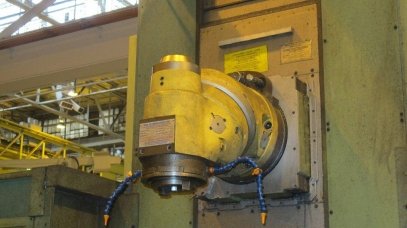

Automatic Universal Milling Head:
max. power 20 kW
rotation speed 10-4500 rpm
speed at constant torque 10-250 rpm
speed at constant power 250-4500 rpm
max. torque 760 Nm
tool taper CAT 50
too clamping force 20000 N

Electrospindle Holding with E28 Electrospindle:
max. power 15 kW
max. torque 12 kN
rotation speed 10-4500 rpm
tool taper HSK 50

Table:
dimensions 2700 x 900 mm
workpiece clamping area 2500 x 900 mm
max. load 8000 kg

Accessories:

- Universal Nutating Head
- 1 additional high speed head
- chip conveyor
- manuals
