Description:
Metal Chip Briquette Press is specially desired for metal recycling.
Specifications:

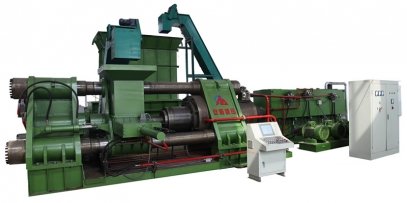

Metal Chip Briquette Press:
On the condition of not adding additive, the briquette press can compress all kinds of cast iron, aluminum, copper,brass,mild steel etc metal chips to high density metal blocks.It also allows for the reclamation of valuable coolant, reduces floor space storage requirements, handling and transportation costs.
As the customer required, we can supply automatic feeder and conveyor to eased the workforce intensity.
Performance
Electrical part adopts PLC control, anti-jamming, high automatic degree, simple operation. Using integrated hydraulic valve block and Chase inherited by valve, to prevent the leakage of oil, reducing the oil system and improve the stability of the system. Rack part of the overall steel castings, welded steel plate to prevent cracking and improve the stability of the equipment reliability and lifetime use. Cylinder in-line type fuel tank, increase the movement speed and productivity. The other with automatic screw feeder according to user conditions, chain automatic feeder out, reducing the labor intensity.
Applicability
In the absence of any additives, various particles, powdered iron, aluminum, copper, magnesium, titanium, molybdenum and other pressed into high-density compact, direct investment smelting furnace, greatly reducing costs.
Parameters of Y83 series briquette press:
Model: Y83-850
Norminal force (KN) : 8500
Block size (mm) : ￠180x(165-180)
Block density (Kg/m3) : ≧5200-5400
Work pressure (MPa) : 25
Production rate (t/h) : 6-7.5
Total power (Kw) : 185
Weight (kg) : 50000
Outside size (mm) : 12000*1400*2600
Dimensions:
12000*1400*2600
Weight:
50000
