year 2002

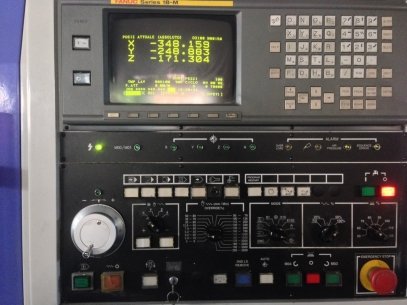

CNC FANUC 18M
X axis travel 800 mm
Y axis 500 mm
Travel Z-axis 510 mm
distance spindle nose-floor table 120/630 mm
Distance spindle center 510 mm column
Rapid axis X-Y 24 m / min
Rapid Z-axis 18 m / min
Advancements in working 8000 mm / min
Ball screws diameter 40 mm axis
Table size 1000x460 mm
Weight over table 800 Kg
Spindle speed 8000 r / min
ISO 40 spindle taper size
Spindle motor power 7.5 / 9 Kw
Taper toolholder DIN 69871 A 40

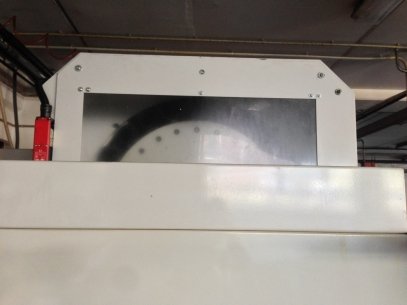

Tool magazine capacity 24 seats
Tool change time tool to tool 3,5 sec
chip-to-chip tool change time 7.0 sec
Maximum tool diameter 100 mm
Maximum tool length 300 mm
Maximum tool weight 8 Kg

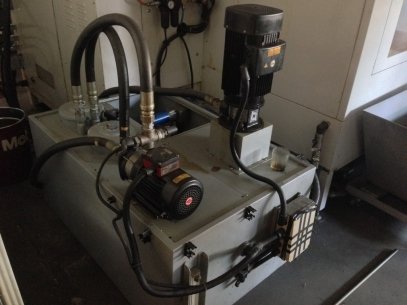

High pressure through the spindle 15 bar
