Other, CQ 6232 ER Digit, 2-HI, ROLLING MILLS
  • Condition:New
  • Category:ROLLING MILLS
  • Type:2-HI
  • Manufacturer:Other
  • Model:CQ 6232 ER Digit
  • YOM:2011
  • Location:Germany, Fröndenberg
  • Price:4125 USD
  • Stock No:-
  • Control:CNC
  • ID:AS65
Description:

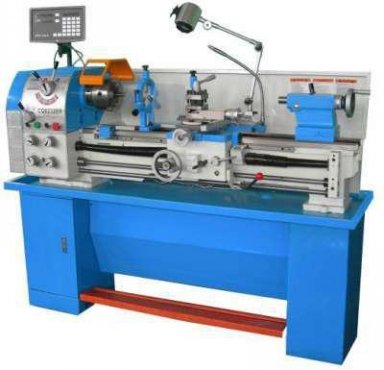

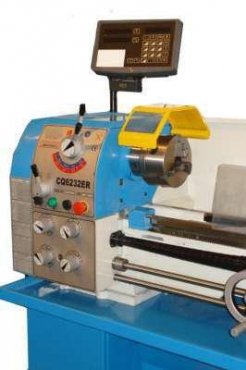

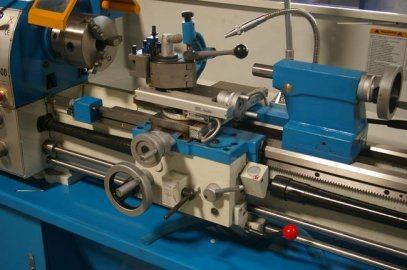

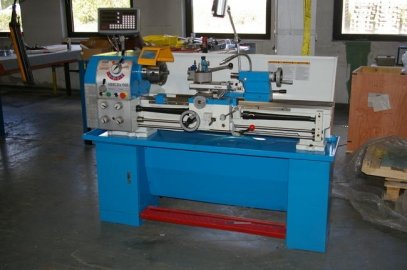

Lathe turning machine CQ 6232 ER Digit
Specifications:
- Digital Display - Max turning diameter over bed 330 mm - Max turning diameter over support 430 mm - Distance between centers 1000 mm - spindle bore 38 mm - spindle MK 5 - speed range 20 min 2000 U /. - Metric threading types from 0.4 to 7 mm - inch tapping 34 kinds 4-56 pitches per inch - Longitudinal feed rates 32 species from 0.079 to 1.291 mm. revolutions per - Qürvorschubgeschwindigkeiten 32 species from 0.017 to 0.276 mm. per rotation - X axis travel 130 mm - 76 mm Travel Y axis - Travel Z axis 860 mm - 32 mm Quill - Taper MT 3 - travel of the quill 100 mm - Engine power 1.1 kW (Available in 230 and 400 V) - engine speed 1420 r / min. - Dimensions 1900 x 730 x 1400 - weight 520 kg Delivery - Foot brake - Halogen lighting - coolant system - (. 160 mm) 3-jaw chuck - (. 200 mm) 4-jaw chuck - platen - Fixed Bezel.
Dimensions:
1900 x 730 x 1400
Dealer name:
Maschinenfuchs GmbH Germany, Fröndenberg
