max. wheel diameter: 30/400 mm
max. module: 5

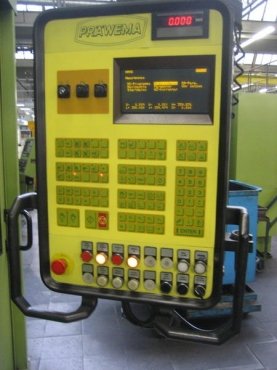

control: Heckler & Koch 785 H
max. number of teeth: 6 - 150
turning speed range: 4000 rpm
total power requirement: 20 kW
dimension of the machine l/w/h: 2,6 x 2,4 x 3,4 m
weight approx.: 5500 kg

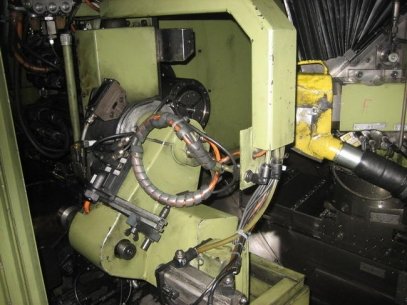

Description: The machine uses the hypocycloidal milling principal, with electronically synchronized tool and workpiece axes for working straight roof-formed teeth, symmetric as well as asymmetric forms. Advantages are high precision and productivity.
