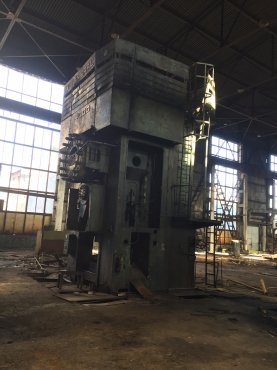

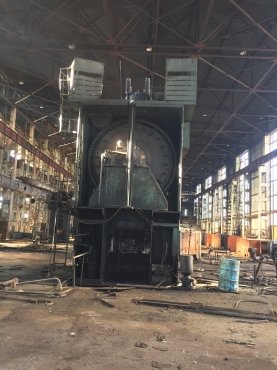

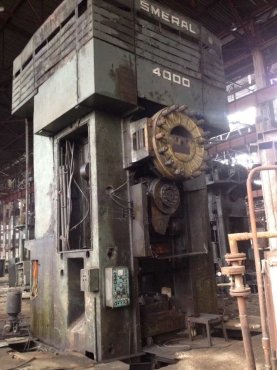

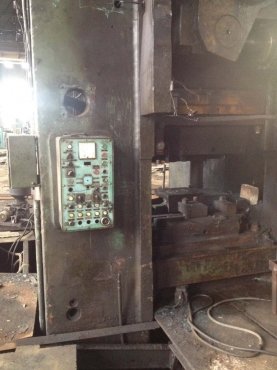

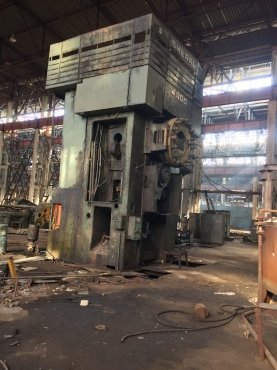

Hot forging press SMERAL LZK 4000 in a good condition
Rated force - 4000 tons
Specifications:
Rated force - 4000 tons
Slide stroke - 380 mm
Frequency of the slide strokes per min - 55
Max distance between slider and bed - 1380 mm
Width of bed under guide lines - 1580 mm
Bed dimensions - 1520x1600 mm
Slider dimensions - 1450x1440 mm
Slider adjustment - 15 mm
Stroke of middle lower extractor:
Working - 31 mm
Max (for die changing) - 41,5 mm
Stroke of upper extractor - 70 mm
Working air pressure - 6 atm
Overall air expense - 250 l/min
Water expense - 13 l/min
Drive capacity - 200 kW
Quantity of used strokes per min - 22
Height of machine under floor level - 7520 mm
Working voltage of main drive - 3x380 V
Frequency – 50 Hz
Overall used machine capacity – 200 kW
Working air pressure - 6 kilogram-force/cm2
Overall consumption of used air - 250 l/stroke
