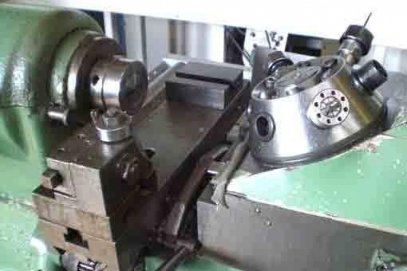

Spindle bore 28 mm max. Material 22 mm center height 125 mm max. Distance turret spindle 350 mm Revolverschlittenweg 100 mm bed length 1020 mm bed width 200 mm 16 Spindle speeds right / left 110 3600 rpm motor 0,48 / 1,5 kW Overall dimensions: Length 1020 mm Width 600 mm Height 1180 mm Weight about 360 kg with: Collet chuck 6 hole turret Cut off coolant system for various tool holder turret
