Max. diameter if gear blank mounted (mm): 2500

Max. width of gear rim cut (mm): 250

Max. diameter of gear rim cut:
External gear (mm): 2250
Internal gear (mm): 2500

Module of gear cut:
Minimum (mm): 1
Maximum (mm): 12

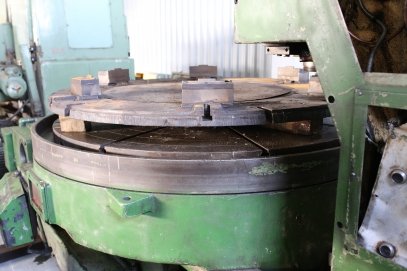

Diameter of table working surface (mm) (Diameter of table): 1700 (1900)

Max/ shaping cutter nominal pitch diameter (mm): 200

Cutter Fastening spindle nose (Morse): No.5

Distance between table upper surface and spindle nose: Minimum (mm): 305
Maximum (mm): 605

Max. Spindle stroke: 300

Distance between spindle axis and
table center:
Minimum (mm): 530
Maximum (mm): 1200

Range of spindle double-stroke per minute (mm): 22+136

Overall dimensions:
Length (mm): 5200
Width (mm): 2450
Height (mm): 4600

Weight (kg): 19500

Main motor (kW): 5.0/6.3/10.0
