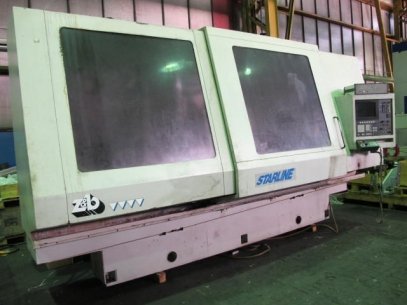

CNC surface grinding machine ZIERSCH & BALTRUSCH STARLINE 2000 CNC-Quick

CNC surface grinding machine
ZIERSCH & BALTRUSCH
Modell STARLINE 2000 CNC-Quick
year of construction 1995

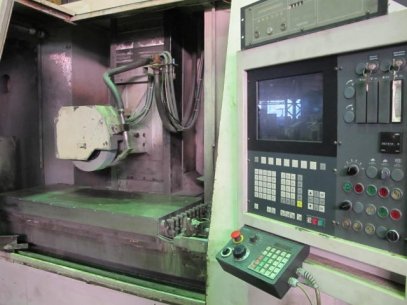

CNC Siemens 805

Grinding capacity max. L x B 1500 x 600 mm
Distance between table and centre of spindle 800 mm
table height 900 mm
table load max. 2800 kg

X-Axis
Table motion max. 1870 mm
Table speed hydr. 40 m/Min.

Z-Axis
Cross motion max. 560 mm
feed motion 1-10000 mm/Min.

Y-Achse
feed motion 0,001-10000 mm/Min.
Rapid motion 10000 mm/Min.

C-Axis

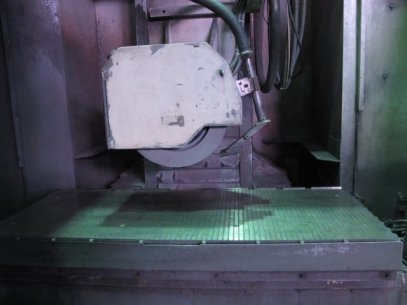

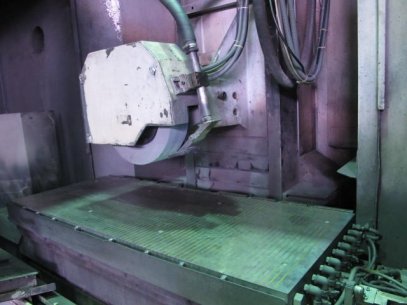

Grindig wheel diameter max. 500 mm
Grindig wheel wide max. l00 mm
bore diameter 203,2 mm
Grinding motor max. 15 kW

Floor space required 4,57-0,03 x 3,2 x2,7 m
Machine weight 11000 kg
