1. with CNC control.

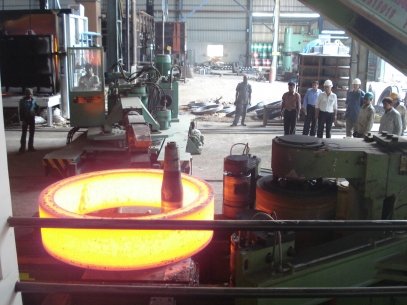

2. this is a Radial and Axial Ring Rolling machine.
3. Only to enter the dimensions of ring,semifinished ring,toll and material specification,then it can be rolled automaticly.
4. The size of ring and status of machine will be displayed on screen.
Specifications:
Outer Dimension Of Ring: 500-3500MM
Height Of Ring: 80-500MM
Radial Rolling Force: 2000KN
Axial Rolled Force: 1600KN
Linear Velocity of Rolling: 1.3/0.4-1.6M/s
Radial Driving Motor Power: 560KW
Axial Driving Motor Power: 2×280KW
Overall Dimensions: 16000×3500×4400MM
