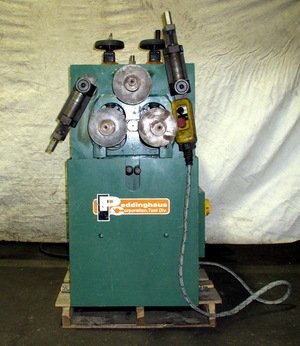

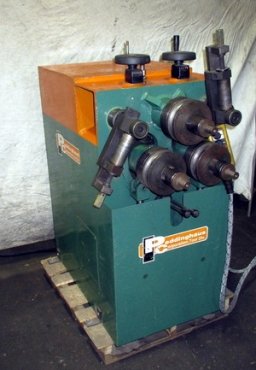

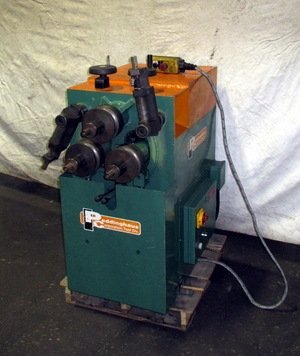

2" x 2" x 3/16 Peddinghause 2350CH, Hydraulic Double Pinch, 3 Rolls Powered, Tooling

Manufacturer: PEDDINGHAUS
Model: 2350CH
S/N: NSF
Year:
Condition: Very Good

2" x 2" x 3/16"
*Asymmetric Double Pinch Rolls provide for even and consistent forming.
*Three Driving Rolls supply constant positive force to insure concentricity.
*Hydraulic Roll Positioning with graduated scaales and roll stop position counters.
*Torque limiting device mounted on central shaft to accomodate different peripheral speed of rolls to compensate for difference between internal and external circumferences of bent profiles, sections and bars.

Specifications:
Flat Bar 2" x 3/8", @20"
2-3/8" x 19/32" @20"
Angles 2" x 2" x 3/16"@24" leg in
2" x 2" x 3/16"@20" leg out
Pipe 2" x 1/16"@ 24"
1-21/32" x 1/8"@ 12"
Motor 2.75 HP 230/3
RPM 12
Roll Diameter 5-23/32"
Shaft Diameter 1-9/16"
Deminsion 29" x 40" x 39"
Weight 1035 LB


Equipped With:
Cylinder End-Stop Adjustment
With rotation of the handwheels or graduated screws placed on machine top the hydraulic cylinders end stop is moved by turning clockwise the end-stops are adjusted upward in such a way that the side rolls will increasingly approach the top roll and stop at required point. By turning counterclockwise the side rolls end stop is adjusted downward away from the top roll.

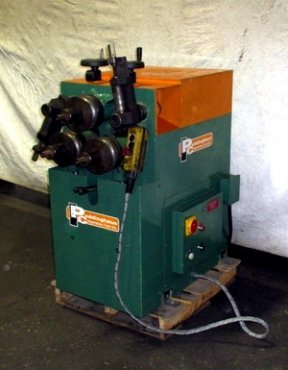

Hand held reverse/forward pendant.

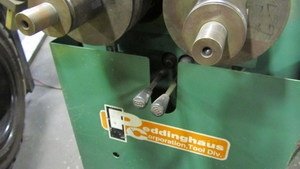

Two levers on the front of the machine housing independently adjust the up and down-stroke of side rolls.

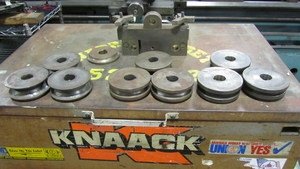

3 sets of pipe roll dies to 1-1/2"
1 set of profile dies.
Operators manual
