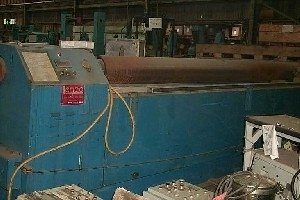

12'Lenco H1212, 2 roll bender, removeable top roll, one urethane roll, 12" Diameter Rolls, 1989
Specifications:
120 TON WAYNE BACK GEARED PRESS - RECONDITIONED
MODEL: NO. WG1-120
CAPACITY: 120 TON
STROKE: 6"
SHUT HEIGHT TO BED: 19" (SDAU)
BED AREA: 42" RL X 30" FB
RAM ADJUSTMENT: 3-1/2" (MANUAL)
SPEED: 40 SPM
RAM AREA; 31" RL X 23-1/2" FB (T-SLOTTED)
DIST UPRIGHTS / FLOOR TO BED: 20-1/4" / 36"
BOLSTER SIZE: 4" X 42" RL X 30" FB (SOLID)
CLUTCH: AIR CLUTCH & BRAKE
ELECTRICS: 10 HP, 1165 RPM, 230/460/3/60V
MOTOR & CONTROLS
APPROX DIMENSIONS; 11'6" H X 6' RL X 7' FB
APPROX WEIGHT: 22,000 LBS
EQUIPPED WITH: FLOOR STANDING BASE
CAST STEEL FRAME CONSTRUCTION
AIR COUNTERBALANCED RAM
LUBRICATION SYSTEM
SINGLE BACK GEARED
SINGLE END DRIVE
RECONDITIONING INCLUDED: NEW CLUTCH SEALS
SQUARED AND FACED RAM
NEW LOWER CONNECTION
YEAR: 1970
CONDITION: VERY GOOD/RECONDITIONED
LOCATION: OUR COLUMBIA, TN WAREHOUSE (Nashville area)
