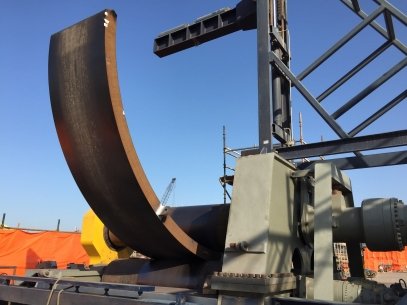

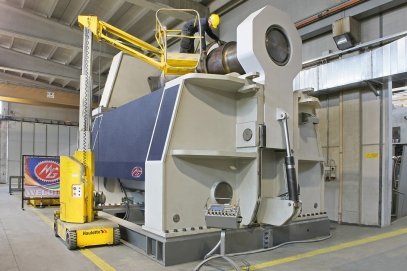

Made in Italy - Brand NEW MG MG3140V planetary type, READY FOR DELIVERY
3100mm x 140mm rolling and 120mm pre-bending on full width x 5 the top roll diameter ( 940mm)
Specifications:
Rolling capacity mm. 140
Pre-bending mm. 120
Installed power hp. 220
Top roll diameter mm. 940
Side rolls diameter mm. 840
Bending force Tons 2400
Total Torque Kg/DaN 85,000
Capacity based on full width x 3 times the top roll diameter at 260N/mm2 YP
- 3 Motorised rolls/ parallelism by massive torsion bars/planetary system
- Movable Console
- Hardening Rolls 55-60HRC
- Rolls 42CrMn Forged steel
- Digital readouts ( ea. axs )
- Conical bending system
- Hydraulic system for opening the machine and ejecting the tube.
- Safety system to conform with EC Rules
- Permanent lubrication system
- Planetary movement of the rolls to avoid any kind of friction and to guarantee height precision for the machine life.
- Parallelism control by means of massive torsion bars to guarantee height precisions also where the newest hydraulic systems fail.
- All parts made in the E.U. and with ISO quality
