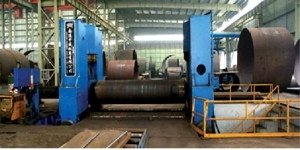

ITEM: PLATE ROLLER
MODEL: W11STNC
TERM OF THE DELIVERY: 3 MONTH

Specification
MAX FORCE 1350 T
MAX WIDTH OF THE PLATE3000
LENGTH OF THE ROLLER 3100
MAX ROLL DIMENSION T90 * 3000 * Φ2200 (aS245 Mpa)
T100 * 3000 *Φ2200 (aS < 245 Mpa
DIAMETER OF THE UPPER ROLLER860
DIAMETER OF THE LOWER ROLLER480
CENTER DISTANCE BETWEEN THE UPPER AND LOWER ROLLER 920
SPEED OF THE ROLLING PROCESS 3 m / min
STROKE OF THE UPPER ROLLER 90 mm / min
POWER OF THE MAIN MOTOR110 kw
