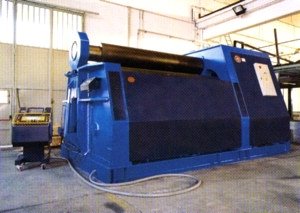

60mm x 3,000mm (2-3/8" x 10') utilmac 4-roll hyd. plate bending roll, model 360
Specifications:
2008 60MM X 3,000MM UTILMAC 4-ROLL HYDRAULIC PLATE BENDING MACHINE MODEL 360 DOUBLE PINCH PLATE PRE-BENDING -NEW HYDRAULIC TECHNOLOGY
RATED CAPACITY (cold rolling of plates)
-Width of plate: 3000 mm
-Thickness of plate rolling: 60 mm
-Plate Yield : 265 N/mm2
-Reducing the plate width 1500 mm, the bending capacity will increase up to 75 mm plate thickness (75mm x 1,500mm)
Rolls dimensions: -Surface length mm. 3100
-Upper roll ∅ mm. 620
Features included:
-Surface hardening of the 4 rolls.
- CNC controller 5 axis for manual/programmable automatic plate rolling.
-Pre-pinch pressure adjustable to facilitate the flat-end reduction on plate pre-bending operation.
-Conical bending attachment with hydraulic tilting of side rolls to engage the angle of the cones and hardened sliding insert.
General specifications:
-Rotation of rolls powered with independent hydraulic motor and planetary gear reduction unit.
-Parallelism between top and bottom rollers by means of massive torsion bar on each roll.
-The four rolls installed on self aligning double crown floating barrel bearings.
-Greasing free technology with sealed bearings and self lubricated bushings.
-Centralized control panel on wheels for easy one-man operation.
-Safety devices in compliance with european regulation.
Delivery term : Ex-Works
-Delivery: READY
-Warranty: 12 months Parts Only
