DoAll 12" x 16" Automatic Horizontal Bandsaw 1.5" Blade Width

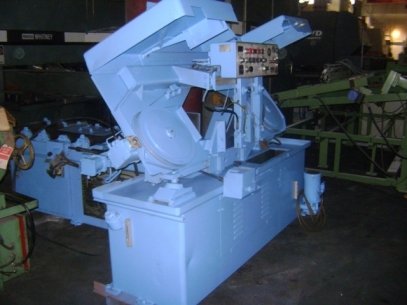

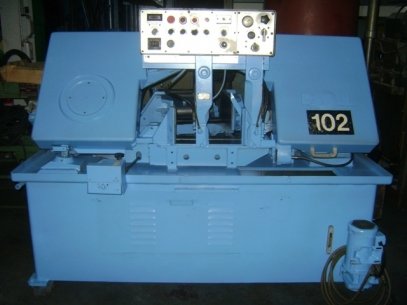

12"X16" DOALL HORIZONTAL BANDSAW MODEL NO. C-1216A

CAPACITY:

BAND WHEELS:
BLADE SIZE:
WORK HEIGHT:
BLADE SPEEDS APPROX.:

EQUIPPED WITH:

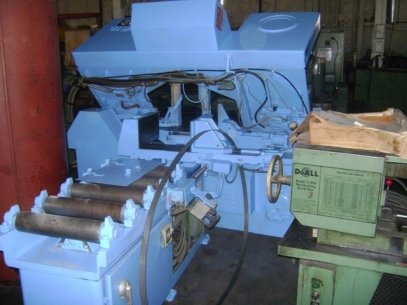

AUTOMATIC SHUTTLE TYPE BAR FEED W/24" STROKE CLAMP & FEED HYDRAULIC VISES

HYDRAULIC HEAD ELEVATION

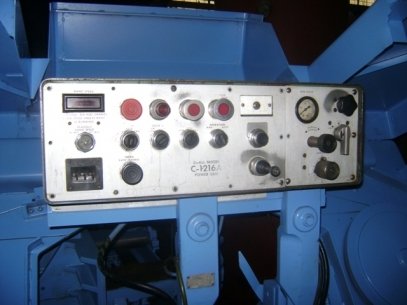

INDEX LENGTH CONTROL W/DIGITAL READOUT CENTRALIZED CONTROL W/PUSH-PULL BUTTONS FOR HYDRAULIC START-STOP;
BAND START-STOP; AUTO CYCLE START-STOP; SELECTOR SWITCHES FOR INDEX REVERSE-HOLD-FORWARD; INDEX VISE

OPEN-AUTOMATIC-CLAMP; FIXED VISE AUTOMATIC-OPEN-CLAMP & OPERATION MANUAL-AUTOMATIC
JOYSTICK FOR SAW HEAD UP-HOLD; AUTOMATIC-DOWN

COOLANT PUMP & MOTOR W/CONTROL FOR ON-OFF BAND SPEED FAST-HOLD-SLOW &
FEED FORCE CONTROL
GAUGES FOR BAND SPEED IN FPM &

FEED FORCE IN PSI
POWER DRIVEN BAND CHIP REMOVAL BRUSH
1/3 HP 3450 RPM COOLANT PUMP MOTOR
2 HP 1800 RPM 230/460/3/60 HYDRAULIC PUMP MOTOR 5 HP 1800 RPM 230/460/3/60 MAIN MOTOR

WEIGHT APPROX.
OVERALL DIMENSIONS APPROX. 84" L-R X 105" F-B X 59" H
