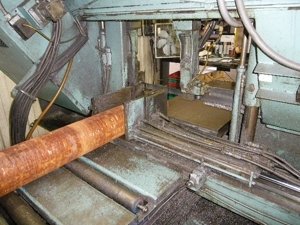

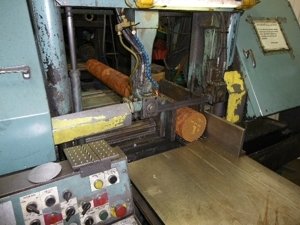

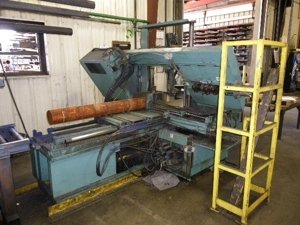

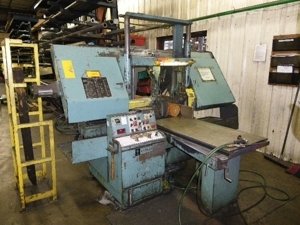

W.F. Wells Model F-16-3U ,16" x 20" Double Column, Auto Feed Band Saw
10 HP, 1-1/2" Blade
Specifications:
W.F. Wells,F-16-3U, 16” X 20”
Horizontal Auto Feed Saw
Serial Number: Year:1998
Model-----------------F-16-3U
Capacity,Round--------16”
Square-------16”
Rectangle----16” x 20”
Cut Length -----------0.12” to 72”
Feed Stroke-----------1/8” to 24”
Blade Motor-----------10 HP 230/460V,3ph,60hz
Hydraulic Motor-------2 HP
Hydraulic Tank cap.---20 Gal.
Blade, Max.-----------1-1/2” X .050” x 17’-10”
Blade Speed-----------70 – 430 FPM
Coolant Cap.----------20 Gal.
Work Height-----------26”
Weight Capacity-------12,000 lbs.
Dimensions------------102” x 102” x 88”H
Weight, Approx.-------4,500 lbs.
Equipped With:
• Automatic Feed Shuttle, 24”
• Double Column Design
• Hydraulic Blade tension
• Front and Back Full Stroke Vises
• Coolant System, Flood
• Power Blade Brush
• Good Condition!!
Preliminary Specifications,
Subject to Revision
F.O.B. Location
