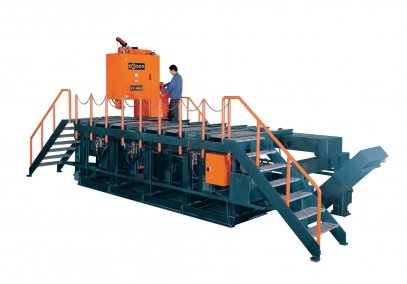

Traversing Head Vertical Plate Saw

Structure
• Triple Precision Ground Wheels and widened Double Track
• Extra heavy-duty work table designed in consideration of heavier cutting load
Blade Drive
• Planetary gearbox guaranteeing high transmission efficiency

• Inverter controlled infinitely variable blade speed

Blade Guidance & Lubrication System
• Hydraulic Tungsten Carbide Blade Guides with bearing guides
• Hydraulic guide arms
• Automatic hydraulic blade tensioning device
• Hydraulic Chip Removal System
• Integral coolant system
• Synchronized power driven blade brush & extra coolant nozzle
Control & Automation
• LCD Screen indicating feed rate, cutting rate, work length setting, error messages.

• Automatic shutoff at end of last cut

• Servo motor controlled cutting pressure
• Automatic torque adjustment
• Laser Beam Projector for easy measurement (Option)

Material Feeding & Clamping
• 3 Independent Hydraulic lift take-in roller system
• AC Servo Motor coupled with planetary gearbox enabling high torque and low speed capability
• Smooth, pulse free feeding from 2 mm/min to 2000 mm/min
Safety
• Interlock design in electrical and hydraulic system
• Conduits protection measure
• "Alert Orange" safety measure
Standard Accessories
• Additional flushing hose
• Bi-metal saw blade

• Built in work light
• Tool box, leveling pads, and an additional wire brush
• Operation & parts manual
