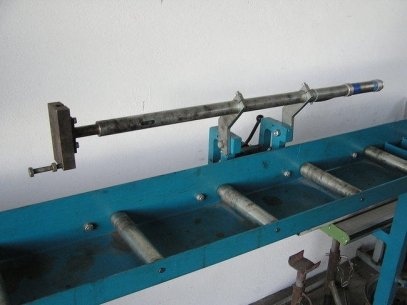

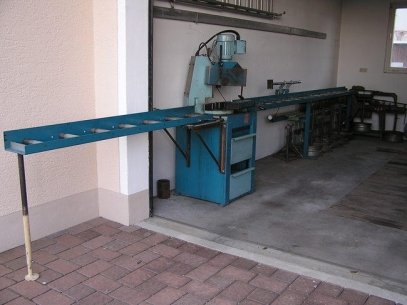

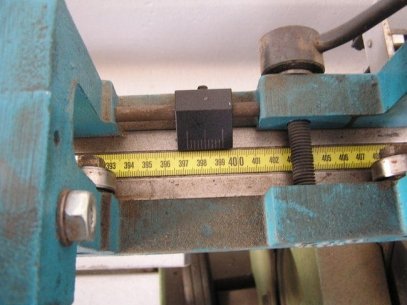

Vertical metal cutting circular saw Eisele VMS 350 manually added features: - Zusatzspannarm with diaphragm spring package for burr-free cuts - dissipation conveyor with measuring device manually 4000mm length - pneumatic Armrückzug for the measuring device (retract) - roller conveyor length 2000 mm, folded up with gas shock absorbers - maximum blade diameter 350 mm - flat approx 170 x 100 mm, round about 120 mm (350 sheets) - Saw blade feeding by hand lever / stop lever - Oeeffnung max vise: 200 mm - Cutting range - with saw blade diameter 350 mm - 90 120 mm - 45 about 100 mm - 90 flat 200 x 90 mm or 140 x 110 mm - gehrungsverstellbar, left to 45 - right to 30 - saw blade numbers 34 + 68 1/min - drive 400 V - coolant system - space approx W 900 x H 1750 x D 950 mm - Weight 400 kg machine has ungeschwinkt large gear with an intermediate shaft and engine cooling system in very good condition. Very little was used as a private citizen to tinker saw in action was, therefore, still in top order, machine is in the eel still room in the garage of the private owner and can be tested under power.
