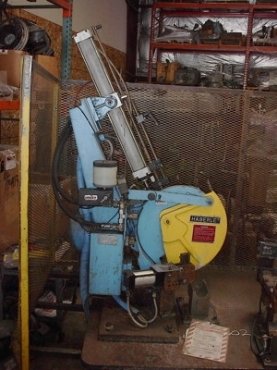

Dual Head Semi-Automatic Circular Cold Saw Special Machine Tooled for your application.
Specifications:
PRICE INCLUDES TOOLING FOR CUSTOM APPLICATION
For Finishing both ends of Tube Straight or Mitering
Cuts Steel & Nonferrous Metals at 54 & 108 RPM
For H.S.S. Saw Blade of Ø 350 mm
Reliable Automatic Downfeed System
Pneumatic Control System
Double Air Vise System
Gears For Full Time Operation
2-Piece Safety Guard System
Spray Mist
Cutting Range: Round Tube 120 mm (4.75")
Section 170x60 mm (6.5"x2.5")
Square (solid) 60 mm (2.5")
AUTOMATIC DOWNFEED SYSTEM
Standard with reliable DRUMAG feeder HPE-11: Quick motion from rest position to the adjustable material level and infinitely adjustable power downfeed motion, with adjustable return point and quick return motion into the upper rest position. This version allows the feeding of the material over the vise into the cutting area, but requires two-hands safety start system. Optional with DRUMAG feeder HPE-77: This unit allows the adjustment of the upper stop position by elimination of the quick downfeed motion towards the material. This means a shorter cutting time. The one-hand start gets the feeding time down to an absolute minimum. So quantities of 200 - 300 cuts per hour can be realized when cutting tubing of Ø 50 mm.
PIVOT SHAFT
Double yoke pivot system with hardened and ground shaft, adjustable on both sides. Low pivot level cares for extremely little vibration.
MACHINE TABLE
Large, plain table allows individual positioning of the two vise units. We will modify the table to your specifications.
SAW BLADES
H.S.S. or H.S.S.-E (Cobalt alloyed), steam treated.
300 x 2.5 x 40 mm, 315 x 2.5 x 40 mm,
325 x 2.5 x 40 mm, 350 x 2.5 x 40 mm.
Toothing: Form C, coarse / medium / fine, depending on the wall thickness of the material to be cut.
Drive holes: 2 off Ø 11 mm on cycle Ø 64 mm.
Segmental blades are not recommended, they can overstress the machine.
3-PHASE MOTOR
Standard USA, 60 Hz: 1700/3400 RPM, 2.1/2.6 kW 440v
SAWBLADE SPEEDS
With standard motor: 54/108 RPM
