Machine Reference nr. : 269
SAWING MACHINE KALTENBACH - AKS 900 AS
Specifications:
Manufacturer KALTENBACH - Germany
Model AKS 900 AS
Year of manufacture 1980
Year of complete revamping 2008 with new filter and electric equipment
Sawing disc
Ø 800 mm.
Ø 910 mm.
Ø 1’010 mm.
Working range
- Rounds: Ø 40 – 345 mm.
- Squares: from 40 to 300 mm.
- Plates: from 40-300 x 210 mm. to 105-400 x 275 mm.
Tolerance ± 3 mm.
Sawing motor
42 - 56 kW
735 – 1’475 rpm.
Tension 380 V. 50 Hz.
Dimension 3’300 x 2’600 x 2’900 h. mm.
Total weight 6’000 Kg.
COMPOSITION OF THE LINE
Inlet roller conveyor
Sawing machine
Exit roller conveyor
Exit table
Filtering unit new in 2008
Hydraulic unit

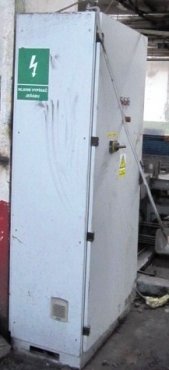

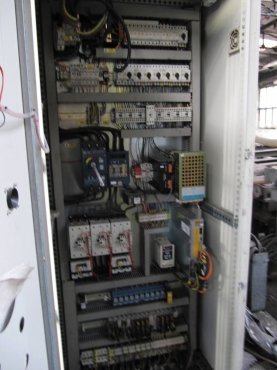

Electric equipment new in 2008
Maintenance manual and electric drawings available
Protection fencing included
