Cutting capacity: 4" @ 90 deg., 3-7/8" @ 45 deg.
Blade speed: 25 AND 50 RPM
Blade size: Max: 14.5", Min. 12"
Miter capacities: LEFT- 0-90 D, RIGHT- 0 TO 45 D
Blade arbor hole: 1.25"
Stroke: 20", up to 9 times
Max head stroke: 9"
Head stroke: Adjustable
Head feed system: Air over hydraulics

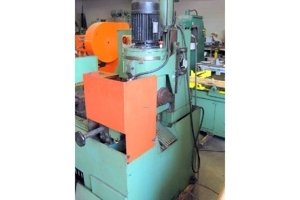

Drive motor: 2 SPEED, 4.5 HP
Electrical service required: 220 / 3 PHASE / 60/ 20 AMPS
Main vice and feed vice: Pneumatic
Max vice opening: 9"
Vice jaw height: 2.75"

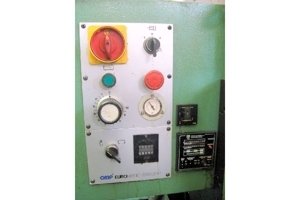

Multiple stroke capacity/ Digital counter: 999 TIMES
Coolant capacity: 5 GAL.
Piece counter range 1 to 99,999
Blade protection: Adjustable
Equipped with:

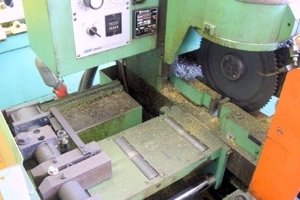

Automatic pneumatic double clamping
Miter head, 90 deg. left, 45 deg. right
Multi-stroke: Max 20" x 9 times
Blade feed speed adjustment
10' infeed roller conveyor
2 blade speeds
Piece counter
Coolant system
Sliding safety cover door
