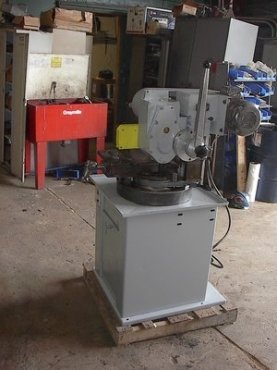

Used Trennjaeger Vertical Cold Saw. The ST 251 is designed for precision straight and mitre cutting and slotting of angles, channels, H-beams, solids and tubing.
Specifications:
Capacities:
Blade 275mm (11”) Segmental
Sections: 4-1/2” x 2-1/2” at 90º.
Rounds: 3-1/2” at 90º.
Standard Accessories:
· Well designed and stable machine stand with ventilators, foundation bars, door for clip drawer and coolant device.
· High quality spur-gear box with tempered helical gears (totally enclosed). Gear box has a square guide housing and vibration resistant, backlash-free adjustment and full length grease pocket.
· Solid high tensile strength base plate and swivel plate of Meehanite cast iron, with chip pit and coolant ports.
· Cutting head feed by means of a hand lever with hardened rack & pinion, and quickly adjustable spring tension for easy control.
· Adjustable depth of cut stop.
· Powerful 2HP, 220 / 440, 3 phase motor with overload switch.
· Variable drive for ferrous and non-ferrous metals.
· Quickly adjustable stops for 45º mitre cutting.
· Machine cutting head adjustable from 0º to 45º to 90º for pipe slitting purposes.
· Thermo-magnetic motor protection switch.
· Complete coolant device with coolant pump. Coolant pump motor overload protected.
