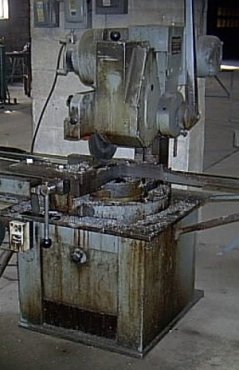

Designed for precision sawing of ferrous and non-ferrous materials.
Specifications:
Machine capacities are: Sections, 8” x 4” at 90º; Rounds, 4¾” at 90º.
·Heavy-duty machine stand of welded steel construction.
·Powerful four stage helical geartrain operates in constant oil bath.
·Saw head travels on a machined vertical column.
·Saw head is equipped with a square guide housing, which is adjustable to resist vibration and eliminated backlash during operation.
·Solid saw table is high tensile strength steel.
·Powerful 2 HP electric drive motor with overload and undervoltage protection.
·Two piece blade guard ensures optimum operator safety.
·Self-contained recirculating coolant system. Pump motor overload protected.
·Slide out chip drawer.
·Variable speed drive.
·Material clamping vice with crossbar and pressure piece allow clamping on both sides of the saw blade for burr free sawing.
·Rugged down feed handle (ratchet type) with adjustable equalizing spring for ease of saw head control.
·Spring loaded chip remover holder for plastic type chip remover.
·Emergency-off push button (manual reset type).
·Service tools and detailed parts & instruction manual.
·Voltage is 220.
