Like new. Overhead clamping/roller, blades, mist coolant, Chip Vacum, built in USA.
Specifications:

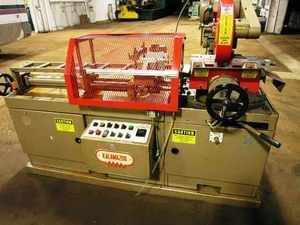

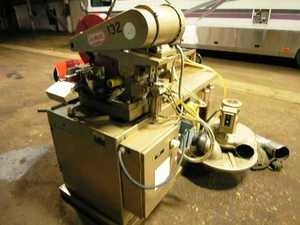

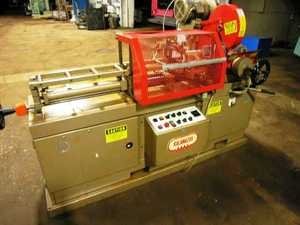

ONE USED KALAMAZOO NONFERROUS HIGH SPEED AUTOMATIC SAW
Model: FA350A
Blade diameter: 350 mm (14.28”)
Blade motor: 3 HP/1725 rpm/208-230-460v, NEMA 182 frame, Lesson Mtr. Mfg.
Spindle speed: 3210 rpm or 11,580 SFPM
Blade arbor size: 32 mm ( 1.2598”)
Flange diameter: 73 mm, 2.874”
Mitering range: 45 degree left & 15 degrees right
Max. vise opening: 6 1/4”
Cutting capacities:
Round tube @ 90 degrees: 5”
Round tube @ 45 degrees: 4 ½”
Sq. tube @ 90 degrees: 4 ½”
Sq. tube @ 45 degrees: 4 ½”
Rect. Tube @ 90 degrees: 6” x 4 ½”
Rect. Tube @ 45 degrees: 4 ½” x 4”
Solid round or sq. tubes @ 90 or 45 degrees: 4”
Automatic stock feeder: 17 ½” max/stroke and up to 5 strokes/cut for 87.5” max.
Feeding accuracy: +/- .004”
Min. feed length: ¼”
Stub length: 7”
Dimensions: 95” x 50” x 62” H x 2,000 lbs.
EQUIPPED WITH:
Aluminum jaw wear plates

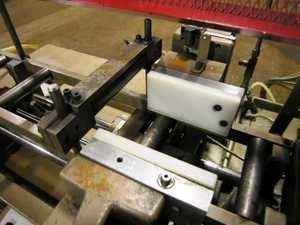

Optional overhead Roller clamp assembly
Automatic material feeder with Hand wheel setting and digital dial read-out
Automatic Parts counter
Automatic head feed with adjustable speed of feed and length of stroke
Mist Matic Coolant system
Vacuum chip removal system by Cincinnati Fan, 3 HP, 3450 rpm, Md. 300S
(4) Blades
Extra Nylon replaceable jaws
Storage in feed base
Manuals
SN: 391 (New 1992)
