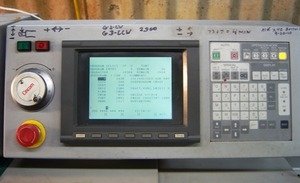

Control: Cincom 5a (Fanuc 18TC)
Maximum working diameter: 1/2" (12mm)
thru hole (14mm/.55")
Maximum machining length: 5.31"(135mm)
Main spindle speeds: 100 - 12,000 rpm
Spindle indexing: 1 Deg
No. of mountable tools: (5) turning, (3) endworking
Turning tools: 10 x 10 x 120 mm
Main spindle motor: 1.5/2.2 kw
No. of rotary tools: 2
rotary tool speed: 100-4000 rpm
Sub-spindle:
max chuck diameter: 1/2" (12mm)
back spindle speed: 100-7000 rpm
back spindle stroke: 200mm
no. of back machining tools: 3
Electrics: 4 kva
Dimensions (approx): 46" x 31" x 61"
Weight (approx): 2400 lbs.
Equipped with:

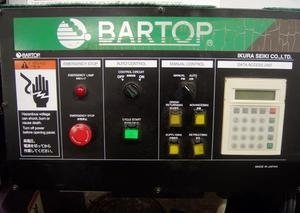

Ikura Seiki LUB-12 Magazine Bar Loader
Synchronized rotary guide bushing unit

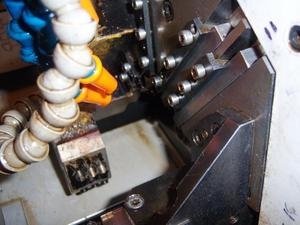

5-position turning with 2 rotary tools, tool holder
Drilling tool (front): 3, (back): 3
All available manuals and tooling/accessories associated with this machine
Condition: Excellent; one owner & single shift!
